Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: VehicleABIEType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

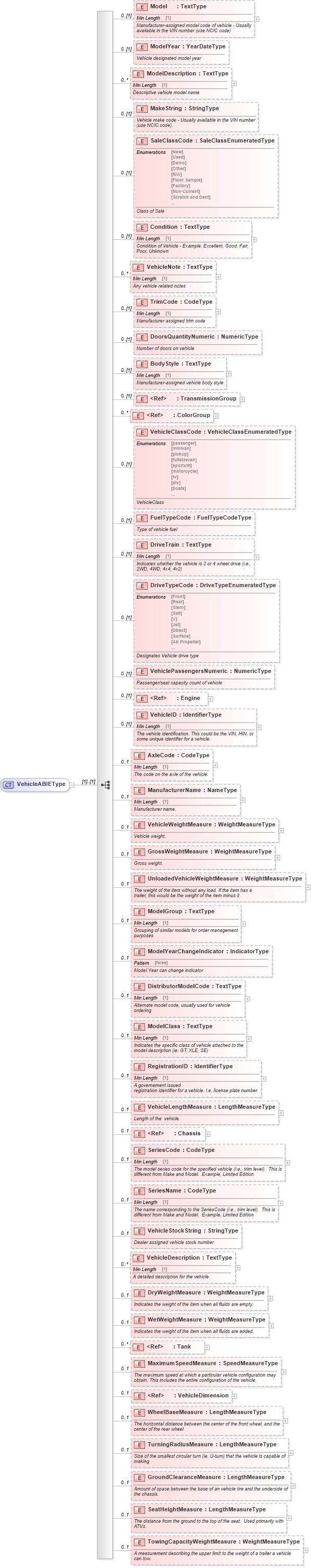

Collapse XSD Schema Diagram:
Drilldown into TowingCapacityWeightMeasure in schema components_xsd Drilldown into SeatHeightMeasure in schema components_xsd Drilldown into GroundClearanceMeasure in schema components_xsd Drilldown into TurningRadiusMeasure in schema components_xsd Drilldown into WheelBaseMeasure in schema components_xsd Drilldown into VehicleDimension in schema components_xsd Drilldown into MaximumSpeedMeasure in schema components_xsd Drilldown into Tank in schema components_xsd Drilldown into WetWeightMeasure in schema components_xsd Drilldown into DryWeightMeasure in schema components_xsd Drilldown into VehicleDescription in schema components_xsd Drilldown into VehicleStockString in schema components_xsd Drilldown into SeriesName in schema components_xsd Drilldown into SeriesCode in schema components_xsd Drilldown into Chassis in schema components_xsd Drilldown into VehicleLengthMeasure in schema components_xsd Drilldown into RegistrationID in schema components_xsd Drilldown into ModelClass in schema components_xsd Drilldown into DistributorModelCode in schema components_xsd Drilldown into ModelYearChangeIndicator in schema components_xsd Drilldown into ModelGroup in schema components_xsd Drilldown into UnloadedVehicleWeightMeasure in schema components_xsd Drilldown into GrossWeightMeasure in schema components_xsd Drilldown into VehicleWeightMeasure in schema components_xsd Drilldown into ManufacturerName in schema components_xsd Drilldown into AxleCode in schema components_xsd Drilldown into VehicleID in schema components_xsd Drilldown into Engine in schema components_xsd Drilldown into VehiclePassengersNumeric in schema components_xsd Drilldown into DriveTypeCode in schema components_xsd Drilldown into DriveTrain in schema components_xsd Drilldown into FuelTypeCode in schema components_xsd Drilldown into VehicleClassCode in schema components_xsd Drilldown into ColorGroup in schema components_xsd Drilldown into TransmissionGroup in schema components_xsd Drilldown into BodyStyle in schema components_xsd Drilldown into DoorsQuantityNumeric in schema components_xsd Drilldown into TrimCode in schema components_xsd Drilldown into VehicleNote in schema components_xsd Drilldown into Condition in schema components_xsd Drilldown into SaleClassCode in schema components_xsd Drilldown into MakeString in schema components_xsd Drilldown into ModelDescription in schema components_xsd Drilldown into ModelYear in schema components_xsd Drilldown into Model in schema components_xsdXSD Diagram of VehicleABIEType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="VehicleABIEType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="Model" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Manufacturer-assigned model code of vehicle - Usually
                            available in the VIN number (use NCIC code)
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ModelYear" type="qdt:YearDateType">
            <xsd:annotation>
                <xsd:documentation>
                        Vehicle designated model year
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="ModelDescription" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Descriptive vehicle model name
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="MakeString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                        Vehicle make code - Usually available in the VIN number
                            (use NCIC code).
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="SaleClassCode" type="scl:SaleClassEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                        Class of Sale
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="Condition" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Condition of Vehicle - Example: Excellent, Good, Fair,
                            Poor, Unknown
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="VehicleNote" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Any vehicle related notes
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="TrimCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                        Manufacturer assigned trim code
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="DoorsQuantityNumeric" type="udt:NumericType">
            <xsd:annotation>
                <xsd:documentation>
                        Number of doors on vehicle
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="BodyStyle" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Manufacturer-assigned vehicle body style
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="TransmissionGroup">
            <xsd:annotation>
                <xsd:documentation>
                        Vehicle Transmission type
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ColorGroup" />
        <xsd:element minOccurs="0" name="VehicleClassCode" type="scl:VehicleClassEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                        VehicleClass
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="FuelTypeCode" type="sqdt:FuelTypeCodeType">
            <xsd:annotation>
                <xsd:documentation>
                        Type of vehicle fuel
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="DriveTrain" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Indicates whether the vehicle is 2 or 4 wheel drive (i.e.,
                            2WD, 4WD, 4x4, 4x2)
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="DriveTypeCode" type="scl:DriveTypeEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                        Designates Vehicle drive type
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="VehiclePassengersNumeric" type="udt:NumericType">
            <xsd:annotation>
                <xsd:documentation>
                        Passenger/seat capacity count of vehicle
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="Engine">
            <xsd:annotation>
                <xsd:documentation>
                        Describes the engine on the vehicle.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="VehicleID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>
                        The vehicle identification. This could be the VIN, HIN, or
                            some unique identifier for a vehicle.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="AxleCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                        The code on the axle of the vehicle.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ManufacturerName" type="udt:NameType">
            <xsd:annotation>
                <xsd:documentation>
                        Manufacturer name.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="VehicleWeightMeasure" type="sqdt:WeightMeasureType">
            <xsd:annotation>
                <xsd:documentation>
                        Vehicle weight.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="GrossWeightMeasure" type="sqdt:WeightMeasureType">
            <xsd:annotation>
                <xsd:documentation>
                        Gross weight.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="UnloadedVehicleWeightMeasure" type="sqdt:WeightMeasureType">
            <xsd:annotation>
                <xsd:documentation>
                        The weight of the item without any load. If the item has a
                            trailer, this would be the weight of the item minus it
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ModelGroup" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Grouping of similar models for order management
                        purposes
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ModelYearChangeIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>
                        Model Year can change indicator
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="DistributorModelCode" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Alternate model code, usually used for vehicle
                        ordering
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ModelClass" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Indicates the specific class of vehicle attached to the
                            model description (ie: GT, XLE, SE)
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="RegistrationID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5"> A governement issued
                registration identifier for a vehicle. I.e. license plate number.
            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="VehicleLengthMeasure" type="sqdt:LengthMeasureType">
            <xsd:annotation>
                <xsd:documentation>Length of the  vehicle.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" ref="Chassis">
            <xsd:annotation>
                <xsd:documentation>A general term that refers to all of the mechanical parts of a car attached to a structural frame. In cars with unitized construction, the chassis comprises everything but the body of the car.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="SeriesCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>The model series code for the specified vehicle (i.e., trim level).  This is different from Make and Model.  Example, Limited Edition</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="SeriesName" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>The name corresponding to the SeriesCode (i.e., trim level).  This is different from Make and Model.  Example, Limited Edition</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="VehicleStockString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer assigned vehicle stock number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleDescription" type="udt:TextType" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        A detailed description for the vehicle.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DryWeightMeasure" type="sqdt:WeightMeasureType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Indicates the weight of the item when all fluids are empty.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="WetWeightMeasure" type="sqdt:WeightMeasureType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Indicates the weight of the item when all fluids are added.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Tank" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Indicates the weight of the item when all fluids are added.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="MaximumSpeedMeasure" type="sqdt:SpeedMeasureType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        The maximum speed at which a particular vehicle configuration may obtain. This includes the entire configuration of the vehicle.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="VehicleDimension" minOccurs="0" maxOccurs="1" />
        <xsd:element name="WheelBaseMeasure" type="sqdt:LengthMeasureType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                       The horizontal distance between the center of the front wheel, and the center of the rear wheel
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="TurningRadiusMeasure" type="sqdt:LengthMeasureType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Size of the smallest circular turn (ie. U-turn) that the vehicle is capable of making
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="GroundClearanceMeasure" type="sqdt:LengthMeasureType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Amount of space between the base of an vehicle tire and the underside of the chassis.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="SeatHeightMeasure" type="sqdt:LengthMeasureType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                        The distance from the ground to the top of the seat.  Used primarily with ATVs.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="TowingCapacityWeightMeasure" type="sqdt:WeightMeasureType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        A measurement describing the upper limit to the weight of a trailer a vehicle can tow.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Model star:Model 0 (1)
ModelYear star:ModelYear 0 (1)
ModelDescription star:ModelDescription 0 unbounded
MakeString star:MakeString 0 (1)
SaleClassCode star:SaleClassCode 0 (1)
Condition star:Condition 0 (1)
VehicleNote star:VehicleNote 0 unbounded
TrimCode star:TrimCode 0 (1)
DoorsQuantityNumeric star:DoorsQuantityNumeric 0 (1)
BodyStyle star:BodyStyle 0 (1)
TransmissionGroup star:TransmissionGroup 0 (1)
ColorGroup star:ColorGroup 0 unbounded
VehicleClassCode star:VehicleClassCode 0 (1)
FuelTypeCode star:FuelTypeCode 0 (1)
DriveTrain star:DriveTrain 0 (1)
DriveTypeCode star:DriveTypeCode 0 (1)
VehiclePassengersNumeric star:VehiclePassengersNumeric 0 (1)
Engine star:Engine 0 (1)
VehicleID star:VehicleID 0 (1)
AxleCode star:AxleCode 0 1
ManufacturerName star:ManufacturerName 0 1
VehicleWeightMeasure star:VehicleWeightMeasure 0 1
GrossWeightMeasure star:GrossWeightMeasure 0 1
UnloadedVehicleWeightMeasure star:UnloadedVehicleWeightMeasure 0 1
ModelGroup star:ModelGroup 0 1
ModelYearChangeIndicator star:ModelYearChangeIndicator 0 1
DistributorModelCode star:DistributorModelCode 0 1
ModelClass star:ModelClass 0 1
RegistrationID star:RegistrationID 0 1
VehicleLengthMeasure star:VehicleLengthMeasure 0 1
Chassis star:Chassis 0 1
SeriesCode star:SeriesCode 0 1
SeriesName star:SeriesName 0 1
VehicleStockString star:VehicleStockString 0 1
VehicleDescription star:VehicleDescription 0 unbounded
DryWeightMeasure star:DryWeightMeasure 0 1
WetWeightMeasure star:WetWeightMeasure 0 1
Tank star:Tank 0 unbounded
MaximumSpeedMeasure star:MaximumSpeedMeasure 0 1
VehicleDimension star:VehicleDimension 0 1
WheelBaseMeasure star:WheelBaseMeasure 0 1
TurningRadiusMeasure star:TurningRadiusMeasure 0 1
GroundClearanceMeasure star:GroundClearanceMeasure 0 1
SeatHeightMeasure star:SeatHeightMeasure 0 1
TowingCapacityWeightMeasure star:TowingCapacityWeightMeasure 0 1
Collapse Derivation Tree:
Collapse References:
star:DecisionVehicle, star:SalesLeadVehicle, star:Vehicle, star:VehicleRemarketingVehicle, star:VehicleRemarketingVehicleRedesigned
Documentation for Standards for Technology in Automotive Retail

Generated using Liquid Studio - Developer Bundle 21.0.0.0
