Definition Type: Element
Name: abstract
Namespace: http://iptc.org/std/NITF/2006-10-18/
Containing Schema: nitf-3-4.xsd
Abstract

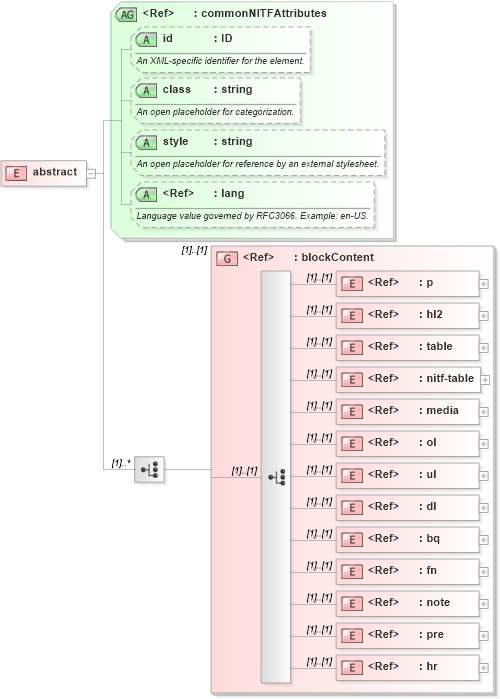

Collapse XSD Schema Diagram:
Drilldown into hr in schema nitf-3-4_xsd Drilldown into pre in schema nitf-3-4_xsd Drilldown into note in schema nitf-3-4_xsd Drilldown into fn in schema nitf-3-4_xsd Drilldown into bq in schema nitf-3-4_xsd Drilldown into dl in schema nitf-3-4_xsd Drilldown into ul in schema nitf-3-4_xsd Drilldown into ol in schema nitf-3-4_xsd Drilldown into media in schema nitf-3-4_xsd Drilldown into nitf-table in schema nitf-3-4_xsd Drilldown into table in schema nitf-3-4_xsd Drilldown into hl2 in schema nitf-3-4_xsd Drilldown into p in schema nitf-3-4_xsd Drilldown into blockContent in schema nitf-3-4_xsd Drilldown into lang in schema xml_xsd Drilldown into style in schema nitf-3-4_xsd Drilldown into class in schema nitf-3-4_xsd Drilldown into id in schema nitf-3-4_xsd Drilldown into commonNITFAttributes in schema nitf-3-4_xsdXSD Diagram of abstract in schema nitf-3-4_xsd (SportsML)
Collapse XSD Schema Code:
<element name="abstract">
    <complexType>
        <choice maxOccurs="unbounded">
            <group ref="nitf:blockContent" />
        </choice>
        <attributeGroup ref="nitf:commonNITFAttributes" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
p nitf:p (1) (1)
hl2 nitf:hl2 (1) (1)
table nitf:table (1) (1)
nitf-table nitf:nitf-table (1) (1)
media nitf:media (1) (1)
ol nitf:ol (1) (1)
ul nitf:ul (1) (1)
dl nitf:dl (1) (1)
bq nitf:bq (1) (1)
fn nitf:fn (1) (1)
note nitf:note (1) (1)
pre nitf:pre (1) (1)
hr nitf:hr (1) (1)
<xs:group> nitf:blockContent (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nitf:id Optional
class nitf:class Optional
style nitf:style Optional
lang nsA:lang Optional
