Documentation for SportsML
Definition Type: Element
Name: body.head
Namespace: http://iptc.org/std/NITF/2006-10-18/
Containing Schema: nitf-3-4.xsd
Abstract

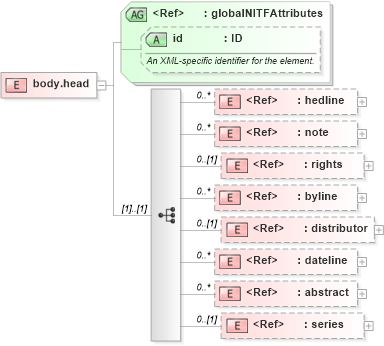

Collapse XSD Schema Diagram:
Drilldown into series in schema nitf-3-4_xsd Drilldown into abstract in schema nitf-3-4_xsd Drilldown into dateline in schema nitf-3-4_xsd Drilldown into distributor in schema nitf-3-4_xsd Drilldown into byline in schema nitf-3-4_xsd Drilldown into rights in schema nitf-3-4_xsd Drilldown into note in schema nitf-3-4_xsd Drilldown into hedline in schema nitf-3-4_xsd Drilldown into id in schema nitf-3-4_xsd Drilldown into globalNITFAttributes in schema nitf-3-4_xsdXSD Diagram of body.head in schema nitf-3-4_xsd (SportsML)
Collapse XSD Schema Code:
<element name="body.head">
    <complexType>
        <sequence>
            <element ref="nitf:hedline" minOccurs="0" maxOccurs="unbounded" />
            <element ref="nitf:note" minOccurs="0" maxOccurs="unbounded" />
            <element ref="nitf:rights" minOccurs="0" />
            <element ref="nitf:byline" minOccurs="0" maxOccurs="unbounded" />
            <element ref="nitf:distributor" minOccurs="0" />
            <element ref="nitf:dateline" minOccurs="0" maxOccurs="unbounded" />
            <element ref="nitf:abstract" minOccurs="0" maxOccurs="unbounded" />
            <element ref="nitf:series" minOccurs="0" />
        </sequence>
        <attributeGroup ref="nitf:globalNITFAttributes" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
hedline nitf:hedline 0 unbounded
note nitf:note 0 unbounded
rights nitf:rights 0 (1)
byline nitf:byline 0 unbounded
distributor nitf:distributor 0 (1)
dateline nitf:dateline 0 unbounded
abstract nitf:abstract 0 unbounded
series nitf:series 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nitf:id Optional
