Documentation for SportsML
Definition Type: ComplexType
Name: FlexRelatedConceptType
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsA:RelatedConceptType
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
The type for identifying a related concept

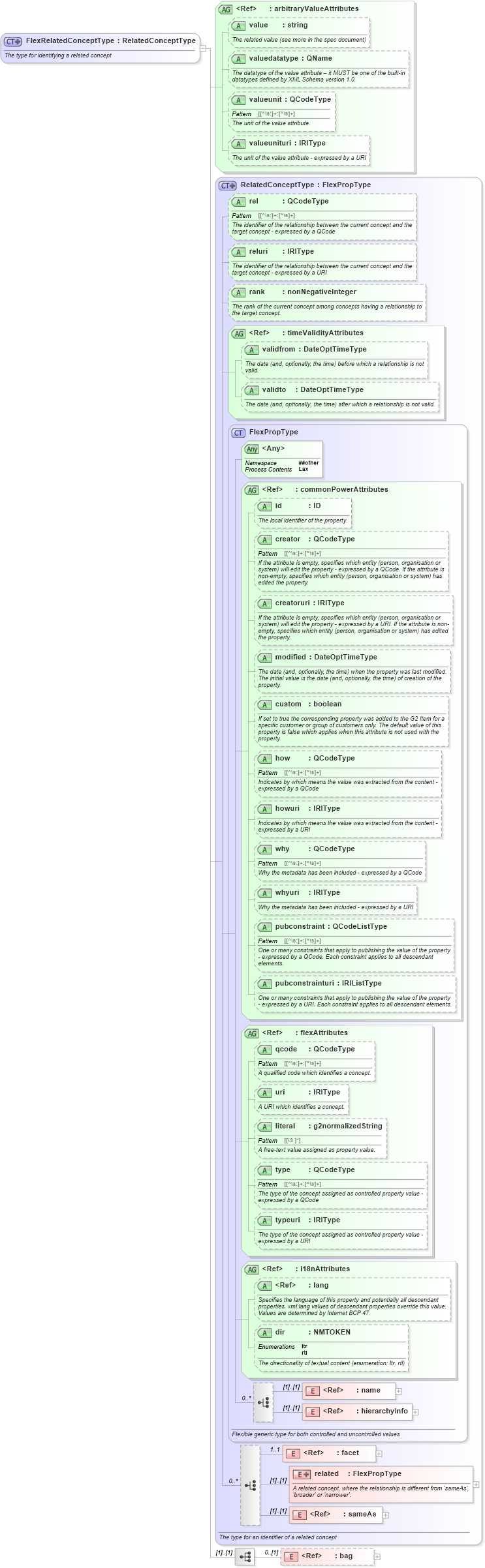

Collapse XSD Schema Diagram:
Drilldown into bag in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into sameAs in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into related in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into facet in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into hierarchyInfo in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into name in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into dir in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into in schema Drilldown into i18nAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into typeuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into type in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into literal in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into uri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into qcode in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into flexAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into FlexPropType in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into validto in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into validfrom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into timeValidityAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into rank in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into reluri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into rel in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into RelatedConceptType in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into valueunituri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into valueunit in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into valuedatatype in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into value in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into arbitraryValueAttributes in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of FlexRelatedConceptType in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:complexType name="FlexRelatedConceptType">
    <xs:annotation>
        <xs:documentation>The type for identifying a related concept</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="RelatedConceptType">
            <xs:sequence>
                <!-- v1.2 : add bag-->
                <xs:element ref="bag" minOccurs="0" />
            </xs:sequence>
            <xs:attributeGroup ref="arbitraryValueAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsA:name (1) (1)
hierarchyInfo nsA:hierarchyInfo (1) (1)
facet nsA:facet 1 1
related nsA:related (1) (1)
sameAs nsA:sameAs (1) (1)
bag nsA:bag 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
qcode nsA:qcode Optional
uri nsA:uri Optional
literal nsA:literal Optional
type nsA:type Optional
typeuri nsA:typeuri Optional
lang Unresolved link to lang Optional
dir nsA:dir Optional
rel nsA:rel Optional
reluri nsA:reluri Optional
rank nsA:rank Optional
validfrom nsA:validfrom Optional
validto nsA:validto Optional
value nsA:value Optional
valuedatatype nsA:valuedatatype Optional
valueunit nsA:valueunit Optional
valueunituri nsA:valueunituri Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsA:related
