Documentation for SportsML
Definition Type: ComplexType
Name: RelatedConceptType
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsA:FlexPropType
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
The type for an identifier of a related concept

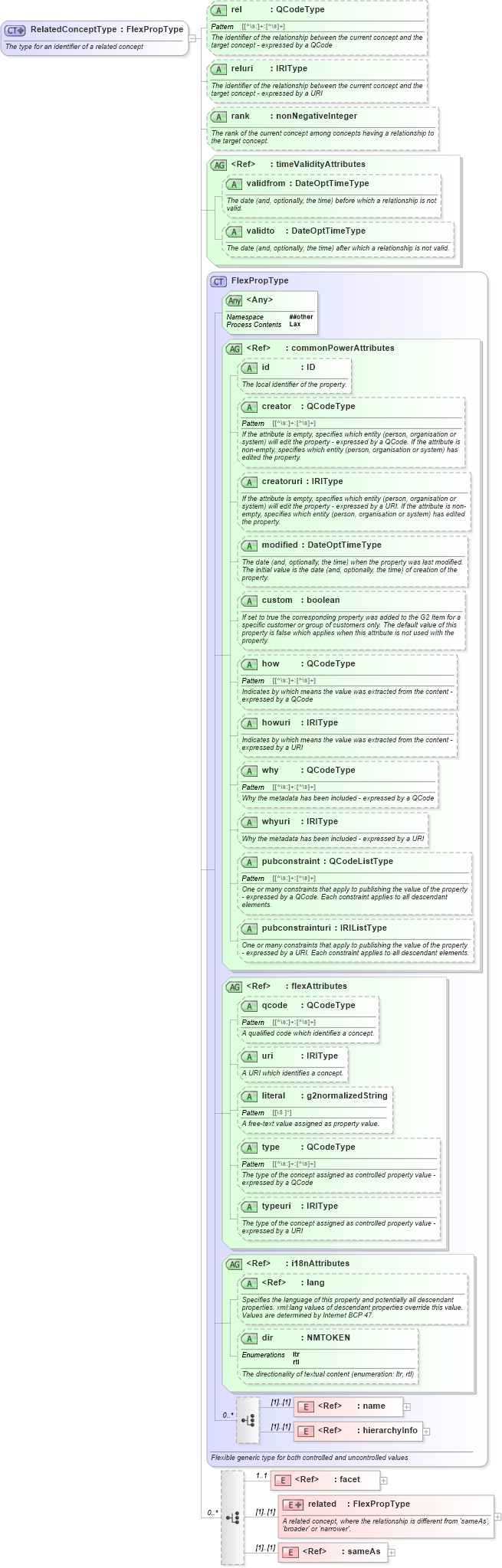

Collapse XSD Schema Diagram:
Drilldown into sameAs in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into related in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into facet in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into hierarchyInfo in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into name in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into dir in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into in schema Drilldown into i18nAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into typeuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into type in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into literal in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into uri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into qcode in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into flexAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into FlexPropType in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into validto in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into validfrom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into timeValidityAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into rank in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into reluri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into rel in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of RelatedConceptType in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:complexType name="RelatedConceptType">
    <xs:annotation>
        <xs:documentation>The type for an identifier of a related concept </xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="FlexPropType">
            <xs:choice minOccurs="0" maxOccurs="unbounded">
                <xs:element ref="facet" minOccurs="1" maxOccurs="1" />
                <xs:element name="related">
                    <xs:annotation>
                        <xs:documentation>A related concept, where the relationship is different from 'sameAs', 'broader' or 'narrower'.</xs:documentation>
                    </xs:annotation>
                    <xs:complexType>
                        <xs:complexContent>
                            <xs:extension base="FlexPropType">
                                <xs:attribute name="rel" type="QCodeType" use="optional">
                                    <xs:annotation>
                                        <xs:documentation>The identifier of the relationship between the current concept and the target concept - expressed by a QCode</xs:documentation>
                                    </xs:annotation>
                                </xs:attribute>
                                <xs:attribute name="reluri" type="IRIType" use="optional">
                                    <xs:annotation>
                                        <xs:documentation>The identifier of the relationship between the current concept and the target concept - expressed by a URI</xs:documentation>
                                    </xs:annotation>
                                </xs:attribute>
                                <xs:attribute name="rank" type="xs:nonNegativeInteger">
                                    <xs:annotation>
                                        <xs:documentation>The rank of the current concept among concepts having a relationship to the target concept.</xs:documentation>
                                    </xs:annotation>
                                </xs:attribute>
                                <xs:attributeGroup ref="timeValidityAttributes" />
                            </xs:extension>
                        </xs:complexContent>
                    </xs:complexType>
                </xs:element>
                <xs:element ref="sameAs" />
            </xs:choice>
            <xs:attribute name="rel" type="QCodeType" use="optional">
                <xs:annotation>
                    <xs:documentation>The identifier of the relationship between the current concept and the target concept - expressed by a QCode</xs:documentation>
                </xs:annotation>
            </xs:attribute>
            <xs:attribute name="reluri" type="IRIType" use="optional">
                <xs:annotation>
                    <xs:documentation>The identifier of the relationship between the current concept and the target concept - expressed by a URI</xs:documentation>
                </xs:annotation>
            </xs:attribute>
            <xs:attribute name="rank" type="xs:nonNegativeInteger" use="optional">
                <xs:annotation>
                    <xs:documentation>The rank of the current concept among concepts having a relationship to the target concept.</xs:documentation>
                </xs:annotation>
            </xs:attribute>
            <xs:attributeGroup ref="timeValidityAttributes" />
        </xs:extension>
        <!-- v1.2 : change the choice to a sequence-->
        <!-- v1.2 : add rank-->
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsA:name (1) (1)
hierarchyInfo nsA:hierarchyInfo (1) (1)
facet nsA:facet 1 1
related nsA:related (1) (1)
sameAs nsA:sameAs (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
qcode nsA:qcode Optional
uri nsA:uri Optional
literal nsA:literal Optional
type nsA:type Optional
typeuri nsA:typeuri Optional
lang Unresolved link to lang Optional
dir nsA:dir Optional
rel nsA:rel Optional
reluri nsA:reluri Optional
rank nsA:rank Optional
validfrom nsA:validfrom Optional
validto nsA:validto Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsA:broader, nsA:FlexRelatedConceptType, nsA:narrower
