Definition Type: ComplexType
Name: RemoteContentPropType
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
A type representing the structure of the remoteContent property

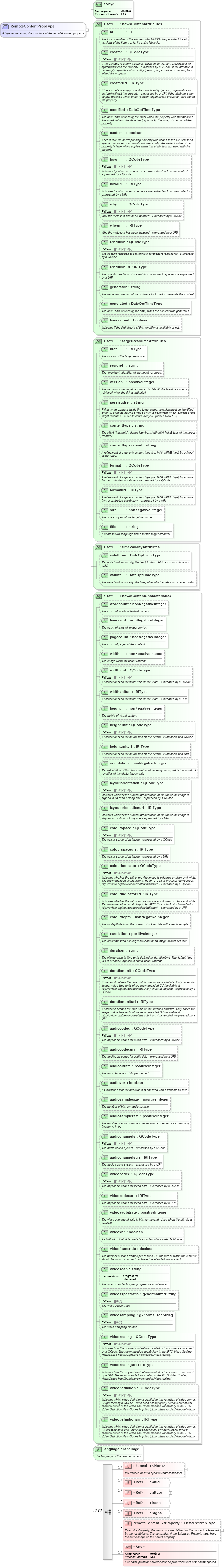

Collapse XSD Schema Diagram:
Drilldown into remoteContentExtProperty in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into signal in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into hash in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into altLoc in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into altId in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into channel in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into language in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into videodefinitionuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into videodefinition in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into videoscalinguri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into videoscaling in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into videosampling in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into videoaspectratio in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into videoscan in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into videoframerate in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into videovbr in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into videoavgbitrate in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into videocodecuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into videocodec in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into audiochannelsuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into audiochannels in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into audiosamplerate in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into audiosamplesize in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into audiovbr in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into audiobitrate in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into audiocodecuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into audiocodec in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into durationunituri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into durationunit in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into duration in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into resolution in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into colourdepth in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into colourindicatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into colourindicator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into colourspaceuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into colourspace in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into layoutorientationuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into layoutorientation in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into orientation in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into heightunituri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into heightunit in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into height in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into widthunituri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into widthunit in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into width in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pagecount in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into linecount in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into wordcount in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into newsContentCharacteristics in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into validto in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into validfrom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into timeValidityAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into title in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into size in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into formaturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into format in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into contenttypevariant in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into contenttype in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into persistidref in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into version in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into residref in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into href in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into targetResourceAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into hascontent in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into generated in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into generator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into renditionuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into rendition in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into newsContentAttributes in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of RemoteContentPropType in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:complexType name="RemoteContentPropType">
    <xs:annotation>
        <xs:documentation> A type representing the structure of the remoteContent property</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="channel" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation>Information about a specific content channel.</xs:documentation>
            </xs:annotation>
            <xs:complexType>
                <xs:attributeGroup ref="commonPowerAttributes" />
                <xs:attribute name="chnlid" type="xs:positiveInteger">
                    <xs:annotation>
                        <xs:documentation>A logical identifier of the channel</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="type" type="QCodeType">
                    <xs:annotation>
                        <xs:documentation>The media type of the data conveyed by the channel - expressed by a QCode</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="typeuri" type="IRIType">
                    <xs:annotation>
                        <xs:documentation>The media type of the data conveyed by the channel - expressed by a URI</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="role" type="QCodeType">
                    <xs:annotation>
                        <xs:documentation>The role the data of this channel plays in the scope of  the full content - expressed by a QCode</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="roleuri" type="IRIType">
                    <xs:annotation>
                        <xs:documentation>The role the data of this channel plays in the scope of  the full content - expressed by a URI</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="language" type="xs:language">
                    <xs:annotation>
                        <xs:documentation>The  language associated with the content of the channel</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attributeGroup ref="newsContentCharacteristics" />
                <xs:attribute name="g2flag" type="xs:string" use="optional" fixed="RCONT">
                    <xs:annotation>
                        <xs:documentation>DO NOT USE this attribute, for G2 internal maintenance purposes only.</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
            </xs:complexType>
        </xs:element>
        <!-- NAR-EV-1.3.5 : add altId to remoteContent-->
        <xs:element ref="altId" minOccurs="0" maxOccurs="unbounded" />
        <!-- NAR-EV-1.3.4 : add altLoc to remoteContent-->
        <xs:element ref="altLoc" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="hash" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="signal" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="remoteContentExtProperty" type="Flex2ExtPropType" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation>Extension Property; the semantics are defined by the concept referenced by the rel attribute. The semantics of the Extension Property must have the same scope as the parent property.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation>Extension point for provider-defined properties from other namespaces</xs:documentation>
            </xs:annotation>
        </xs:any>
    </xs:sequence>
    <xs:attributeGroup ref="newsContentAttributes" />
    <xs:attributeGroup ref="targetResourceAttributes" />
    <xs:attributeGroup ref="timeValidityAttributes" />
    <xs:attributeGroup ref="newsContentCharacteristics" />
    <xs:attribute name="language" type="xs:language">
        <xs:annotation>
            <xs:documentation>The language of the remote content</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:anyAttribute namespace="##other" processContents="lax" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
channel nsA:channel 0 unbounded
altId nsA:altId 0 unbounded
altLoc nsA:altLoc 0 unbounded
hash nsA:hash 0 unbounded
signal nsA:signal 0 unbounded
remoteContentExtProperty nsA:remoteContentExtProperty 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
rendition nsA:rendition Optional
renditionuri nsA:renditionuri Optional
generator nsA:generator Optional
generated nsA:generated Optional
hascontent nsA:hascontent Optional
href nsA:href Optional
residref nsA:residref Optional
version nsA:version Optional
persistidref nsA:persistidref Optional
contenttype nsA:contenttype Optional
contenttypevariant nsA:contenttypevariant Optional
format nsA:format Optional
formaturi nsA:formaturi Optional
size nsA:size Optional
title nsA:title Optional
validfrom nsA:validfrom Optional
validto nsA:validto Optional
wordcount nsA:wordcount Optional
linecount nsA:linecount Optional
pagecount nsA:pagecount Optional
width nsA:width Optional
widthunit nsA:widthunit Optional
widthunituri nsA:widthunituri Optional
height nsA:height Optional
heightunit nsA:heightunit Optional
heightunituri nsA:heightunituri Optional
orientation nsA:orientation Optional
layoutorientation nsA:layoutorientation Optional
layoutorientationuri nsA:layoutorientationuri Optional
colourspace nsA:colourspace Optional
colourspaceuri nsA:colourspaceuri Optional
colourindicator nsA:colourindicator Optional
colourindicatoruri nsA:colourindicatoruri Optional
colourdepth nsA:colourdepth Optional
resolution nsA:resolution Optional
duration nsA:duration Optional
durationunit nsA:durationunit Optional
durationunituri nsA:durationunituri Optional
audiocodec nsA:audiocodec Optional
audiocodecuri nsA:audiocodecuri Optional
audiobitrate nsA:audiobitrate Optional
audiovbr nsA:audiovbr Optional
audiosamplesize nsA:audiosamplesize Optional
audiosamplerate nsA:audiosamplerate Optional
audiochannels nsA:audiochannels Optional
audiochannelsuri nsA:audiochannelsuri Optional
videocodec nsA:videocodec Optional
videocodecuri nsA:videocodecuri Optional
videoavgbitrate nsA:videoavgbitrate Optional
videovbr nsA:videovbr Optional
videoframerate nsA:videoframerate Optional
videoscan nsA:videoscan Optional
videoaspectratio nsA:videoaspectratio Optional
videosampling nsA:videosampling Optional
videoscaling nsA:videoscaling Optional
videoscalinguri nsA:videoscalinguri Optional
videodefinition nsA:videodefinition Optional
videodefinitionuri nsA:videodefinitionuri Optional
language nsA:language (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsA:remoteContent
