Documentation for W3C XForms
Definition Type: Element
Name: action
Namespace: http://www.w3.org/2002/xforms
Containing Schema: XForms-Schema.xsd
Abstract

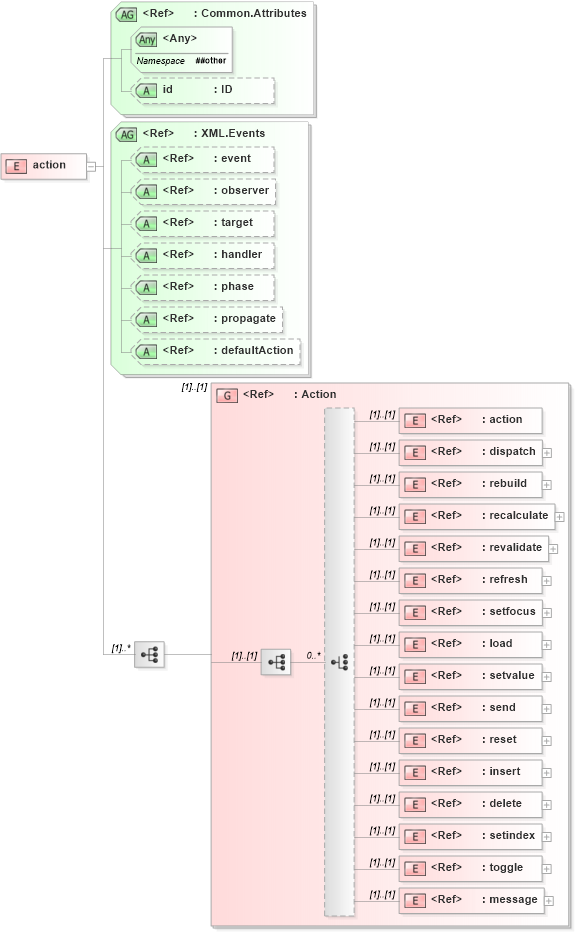

Collapse XSD Schema Diagram:
Drilldown into message in schema xforms-schema_xsd Drilldown into toggle in schema xforms-schema_xsd Drilldown into setindex in schema xforms-schema_xsd Drilldown into delete in schema xforms-schema_xsd Drilldown into insert in schema xforms-schema_xsd Drilldown into reset in schema xforms-schema_xsd Drilldown into send in schema xforms-schema_xsd Drilldown into setvalue in schema xforms-schema_xsd Drilldown into load in schema xforms-schema_xsd Drilldown into setfocus in schema xforms-schema_xsd Drilldown into refresh in schema xforms-schema_xsd Drilldown into revalidate in schema xforms-schema_xsd Drilldown into recalculate in schema xforms-schema_xsd Drilldown into rebuild in schema xforms-schema_xsd Drilldown into dispatch in schema xforms-schema_xsd Drilldown into action in schema xforms-schema_xsd Drilldown into Action in schema xforms-schema_xsd Drilldown into defaultAction in schema xml-events-attribs-1_xsd Drilldown into propagate in schema xml-events-attribs-1_xsd Drilldown into phase in schema xml-events-attribs-1_xsd Drilldown into handler in schema xml-events-attribs-1_xsd Drilldown into target in schema xml-events-attribs-1_xsd Drilldown into observer in schema xml-events-attribs-1_xsd Drilldown into event in schema xml-events-attribs-1_xsd Drilldown into XML.Events in schema xforms-schema_xsd Drilldown into id in schema xforms-schema_xsd Drilldown into Common.Attributes in schema xforms-schema_xsdXSD Diagram of action in schema xforms-schema_xsd (W3C XForms)
Collapse XSD Schema Code:
<xsd:element name="action">
    <xsd:complexType>
        <xsd:sequence maxOccurs="unbounded">
            <xsd:group ref="xforms:Action" />
        </xsd:sequence>
        <xsd:attributeGroup ref="xforms:Common.Attributes" />
        <xsd:attributeGroup ref="xforms:XML.Events" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
action xforms:action (1) (1)
dispatch xforms:dispatch (1) (1)
rebuild xforms:rebuild (1) (1)
recalculate xforms:recalculate (1) (1)
revalidate xforms:revalidate (1) (1)
refresh xforms:refresh (1) (1)
setfocus xforms:setfocus (1) (1)
load xforms:load (1) (1)
setvalue xforms:setvalue (1) (1)
send xforms:send (1) (1)
reset xforms:reset (1) (1)
insert xforms:insert (1) (1)
delete xforms:delete (1) (1)
setindex xforms:setindex (1) (1)
toggle xforms:toggle (1) (1)
message xforms:message (1) (1)
<xs:group> xforms:Action (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id xforms:id Optional
event ev:event (Optional)
observer ev:observer (Optional)
target ev:target (Optional)
handler ev:handler (Optional)
phase ev:phase (Optional)
propagate ev:propagate (Optional)
defaultAction ev:defaultAction (Optional)
<anyAttribute> Allowed namespace: '##other'
