Documentation for W3C XForms
Definition Type: Element
Name: extension
Namespace: http://www.w3.org/2001/XMLSchema
Type: xsd:simpleExtensionType
Containing Schema: XMLSchema.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

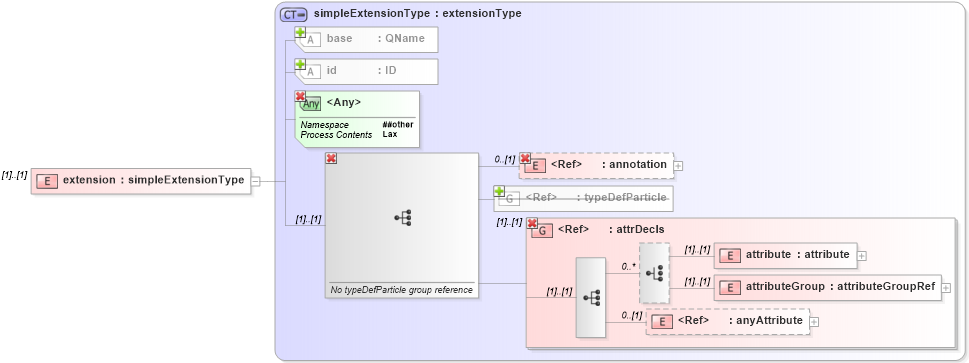

Collapse XSD Schema Diagram:
Drilldown into anyAttribute in schema xmlschema_xsd Drilldown into attributeGroup in schema xmlschema_xsd Drilldown into attribute in schema xmlschema_xsd Drilldown into attrDecls in schema xmlschema_xsd Drilldown into typeDefParticle in schema xmlschema_xsd Drilldown into annotation in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsd Drilldown into base in schema xmlschema_xsd Drilldown into simpleExtensionType in schema xmlschema_xsdXSD Diagram of extension in schema xmlschema_xsd (W3C XForms)
Collapse XSD Schema Code:
<xs:element name="extension" type="xs:simpleExtensionType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xsd:annotation 0 (1)
group xsd:group (1) (1)
all xsd:all (1) (1)
choice xsd:choice (1) (1)
sequence xsd:sequence (1) (1)
attribute xsd:attribute (1) (1)
attributeGroup xsd:attributeGroup (1) (1)
anyAttribute xsd:anyAttribute 0 (1)
annotation xsd:annotation 0 (1)
<xs:group> xsd:typeDefParticle 0 (1)
<xs:group> xsd:attrDecls (1) (1)
<xs:group> xsd:attrDecls (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id xsd:id (Optional)
base xsd:base Required
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
