Definition Type: ComplexType
Name: simpleExtensionType
Namespace: http://www.w3.org/2001/XMLSchema
Type: xsd:extensionType
Containing Schema: XMLSchema.xsd
Abstract
Collapse XSD Schema Diagram:

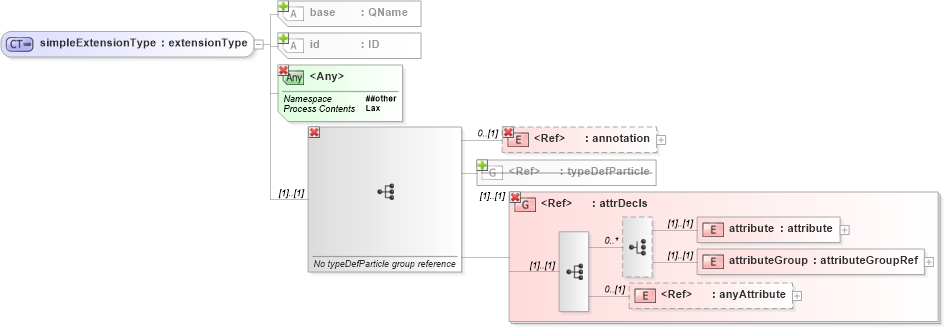

Drilldown into anyAttribute in schema xmlschema_xsd Drilldown into attributeGroup in schema xmlschema_xsd Drilldown into attribute in schema xmlschema_xsd Drilldown into attrDecls in schema xmlschema_xsd Drilldown into typeDefParticle in schema xmlschema_xsd Drilldown into annotation in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsd Drilldown into base in schema xmlschema_xsdXSD Diagram of simpleExtensionType in schema xmlschema_xsd (W3C XForms)
Collapse XSD Schema Code:
<xs:complexType name="simpleExtensionType">
    <xs:complexContent>
        <xs:restriction base="xs:extensionType">
            <xs:sequence>
                <xs:annotation>
                    <xs:documentation>
      No typeDefParticle group reference</xs:documentation>
                </xs:annotation>
                <xs:element ref="xs:annotation" minOccurs="0" />
                <xs:group ref="xs:attrDecls" />
            </xs:sequence>
            <xs:anyAttribute namespace="##other" processContents="lax" />
        </xs:restriction>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xsd:annotation 0 (1)
group xsd:group (1) (1)
all xsd:all (1) (1)
choice xsd:choice (1) (1)
sequence xsd:sequence (1) (1)
attribute xsd:attribute (1) (1)
attributeGroup xsd:attributeGroup (1) (1)
anyAttribute xsd:anyAttribute 0 (1)
annotation xsd:annotation 0 (1)
<xs:group> xsd:typeDefParticle 0 (1)
<xs:group> xsd:attrDecls (1) (1)
<xs:group> xsd:attrDecls (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id xsd:id (Optional)
base xsd:base Required
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
xsd:extension
