Docs for schema item EML in OASIS Election Markup Language (EML)

Documentation for OASIS Election Markup Language (EML)

Definition Type:	Element
Name:	EML
Namespace:	urn:oasis:names:tc:evs:schema:eml
Type:	nsA:EMLstructure
Containing Schema:	360a-outgoingchanneloptions-v5-0.xsd
Abstract

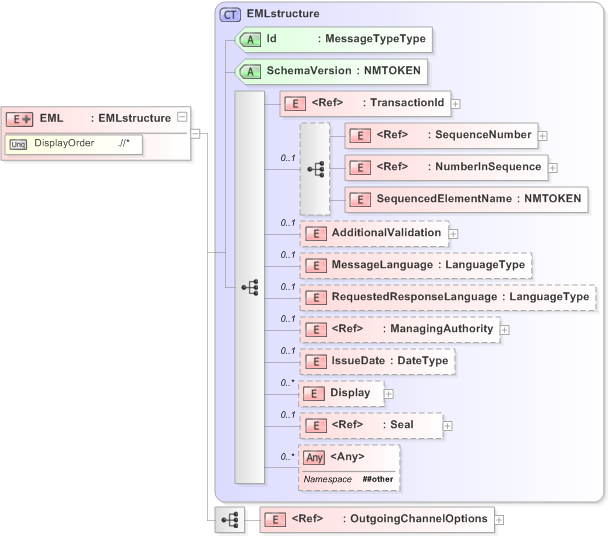

XSD Schema Diagram:

XSD Diagram of EML in schema 360a-outgoingchanneloptions-v5-0_xsd (OASIS Election Markup Language (EML))

XSD Schema Code:

<xs:element name="EML">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="EMLstructure">
                <xs:sequence>
                    <xs:element ref="OutgoingChannelOptions" />
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
    <xs:unique name="DisplayOrder">
        <xs:selector xpath=".//*" />
        <xs:field xpath="@DisplayOrder" />
    </xs:unique>
</xs:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
TransactionId	nsA:TransactionId	(1)	(1)
SequenceNumber	nsA:SequenceNumber	(1)	(1)
NumberInSequence	nsA:NumberInSequence	(1)	(1)
SequencedElementName	nsA:SequencedElementName	(1)	(1)
AdditionalValidation	nsA:AdditionalValidation	0	(1)
MessageLanguage	nsA:MessageLanguage	0	(1)
RequestedResponseLanguage	nsA:RequestedResponseLanguage	0	(1)
ManagingAuthority	nsA:ManagingAuthority	0	(1)
IssueDate	nsA:IssueDate	0	(1)
Display	nsA:Display	0	unbounded
Seal	nsA:Seal	0	(1)
OutgoingChannelOptions	nsA:OutgoingChannelOptions	(1)	(1)
<xs:any>	Allowed namespace: '##other'	0	unbounded

Child Attributes:

Name	Type	Default Value	Use
Id	nsA:Id		Required
SchemaVersion	nsA:SchemaVersion		Required

Derivation Tree:
	nsA:EMLstructure *EML*
