<xs:complexType name="EMLstructure">
<xs:sequence>
<xs:element ref="TransactionId" />
<xs:sequence minOccurs="0">
<xs:element ref="SequenceNumber" />
<xs:element ref="NumberInSequence" />
<xs:element name="SequencedElementName" type="xs:NMTOKEN" />
</xs:sequence>
<xs:element name="AdditionalValidation" minOccurs="0">
<xs:complexType>
<xs:sequence>
<xs:element name="Location" type="xs:anyURI" />
<xs:element name="Type" type="xs:anyURI" />
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="MessageLanguage" type="LanguageType" minOccurs="0" />
<xs:element name="RequestedResponseLanguage" type="LanguageType" minOccurs="0" />
<xs:element ref="ManagingAuthority" minOccurs="0" />
<xs:element name="IssueDate" type="DateType" minOccurs="0" />
<xs:element name="Display" minOccurs="0" maxOccurs="unbounded">
<xs:complexType>
<xs:sequence>
<xs:element name="Stylesheet" maxOccurs="unbounded">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="xs:anyURI">
<xs:attribute name="Type" type="xs:token" use="required" />
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="Format" type="xs:NMTOKEN" use="optional" />
</xs:complexType>
</xs:element>
<xs:element ref="Seal" minOccurs="0" />
<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
</xs:sequence>
<xs:attribute name="Id" type="MessageTypeType" use="required" />
<xs:attribute name="SchemaVersion" type="xs:NMTOKEN" use="required" />
</xs:complexType>
|

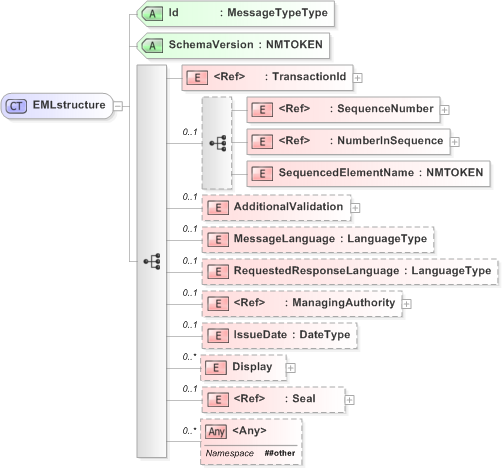

XSD Schema Diagram:
