Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: calculationPeriodFrequency
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:CalculationPeriodFrequency
Containing Schema: fpml-ird-4-4.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The frequency at which calculation period end dates occur with the regular part of the calculation period schedule and their roll date convention.

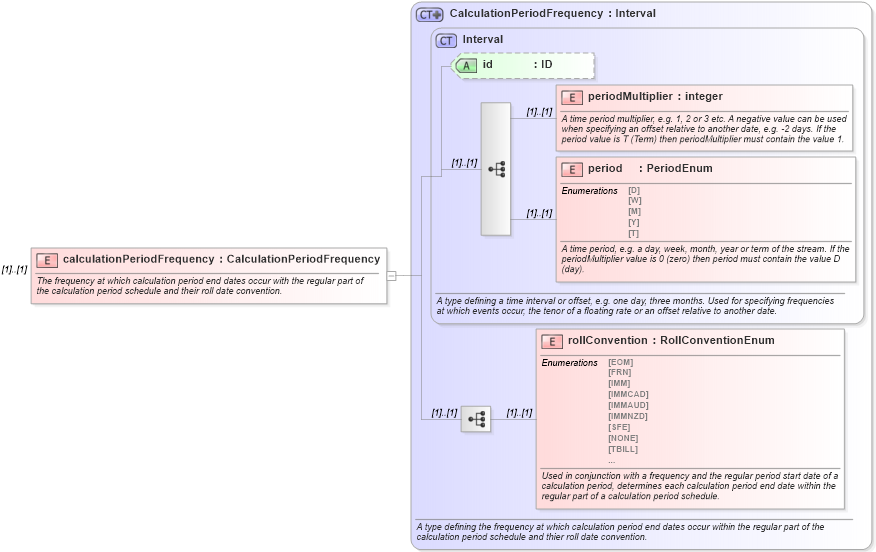

Collapse XSD Schema Diagram:
Drilldown into rollConvention in schema fpml-shared-4-4_xsd Drilldown into period in schema fpml-shared-4-4_xsd Drilldown into periodMultiplier in schema fpml-shared-4-4_xsd Drilldown into id in schema fpml-shared-4-4_xsd Drilldown into Interval in schema fpml-shared-4-4_xsd Drilldown into CalculationPeriodFrequency in schema fpml-shared-4-4_xsdXSD Diagram of calculationPeriodFrequency in schema fpml-ird-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="calculationPeriodFrequency" type="CalculationPeriodFrequency">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The frequency at which calculation period end dates occur with the regular part of the calculation period schedule and their roll date convention.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
periodMultiplier fpml:periodMultiplier (1) (1)
period fpml:period (1) (1)
rollConvention fpml:rollConvention (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
