Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: CalculationPeriodFrequency
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:Interval
Containing Schema: fpml-shared-4-4.xsd
Abstract
Documentation:
A type defining the frequency at which calculation period end dates occur within the regular part of the calculation period schedule and thier roll date convention.

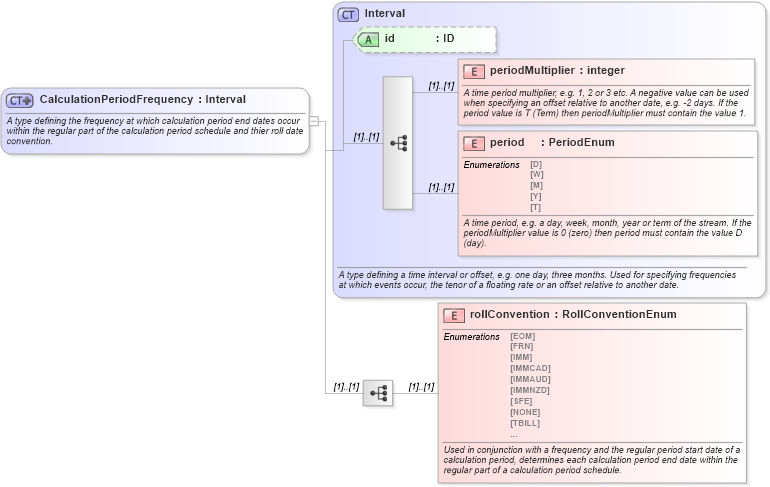

Collapse XSD Schema Diagram:
Drilldown into rollConvention in schema fpml-shared-4-4_xsd Drilldown into period in schema fpml-shared-4-4_xsd Drilldown into periodMultiplier in schema fpml-shared-4-4_xsd Drilldown into id in schema fpml-shared-4-4_xsd Drilldown into Interval in schema fpml-shared-4-4_xsdXSD Diagram of CalculationPeriodFrequency in schema fpml-shared-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CalculationPeriodFrequency">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining the frequency at which calculation period end dates occur within the regular part of the calculation period schedule and thier roll date convention.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Interval">
            <xsd:sequence>
                <xsd:element name="rollConvention" type="RollConventionEnum">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Used in conjunction with a frequency and the regular period start date of a calculation period, determines each calculation period end date within the regular part of a calculation period schedule.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
periodMultiplier fpml:periodMultiplier (1) (1)
period fpml:period (1) (1)
rollConvention fpml:rollConvention (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:calculationPeriodFrequency, fpml:calculationPeriodFrequency, fpml:calculationPeriodFrequency
