Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: ResponseMessage
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:Message
Containing Schema: fpml-msg-4-4.xsd
Abstract True
Documentation:
A type refining the generic message content model to make it specific to response messages.

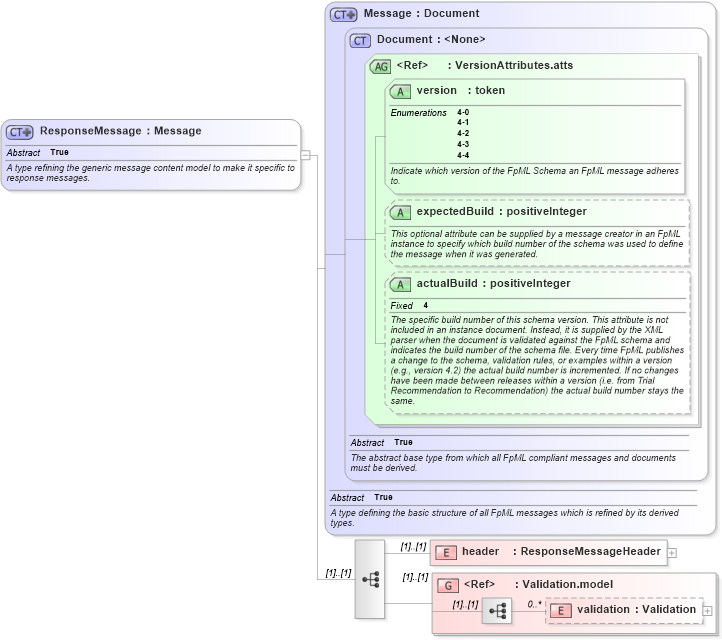

Collapse XSD Schema Diagram:
Drilldown into validation in schema fpml-doc-4-4_xsd Drilldown into Validation.model in schema fpml-doc-4-4_xsd Drilldown into header in schema fpml-msg-4-4_xsd Drilldown into actualBuild in schema fpml-doc-4-4_xsd Drilldown into expectedBuild in schema fpml-doc-4-4_xsd Drilldown into version in schema fpml-doc-4-4_xsd Drilldown into VersionAttributes.atts in schema fpml-doc-4-4_xsd Drilldown into Document in schema fpml-doc-4-4_xsd Drilldown into Message in schema fpml-msg-4-4_xsdXSD Diagram of ResponseMessage in schema fpml-msg-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="ResponseMessage" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type refining the generic message content model to make it specific to response messages.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Message">
            <xsd:sequence>
                <xsd:element name="header" type="ResponseMessageHeader" />
                <xsd:group ref="Validation.model" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
header fpml:header (1) (1)
validation fpml:validation 0 unbounded
<xs:group> fpml:Validation.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
version fpml:version Required
expectedBuild fpml:expectedBuild (Optional)
actualBuild fpml:actualBuild (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:AcceptQuote, fpml:ConfirmationCancelled, fpml:NovationResponseMessage, fpml:PositionsAcknowledged, fpml:PositionsMatchResults, fpml:QuoteAcceptanceConfirmed, fpml:QuoteAlreadyExpired, fpml:QuoteUpdated, fpml:RequestQuoteResponse, fpml:TradeAffirmed, fpml:TradeAlreadyMatchedfpml:TradeAlreadySubmitted, fpml:TradeAmendmentResponse, fpml:TradeCashflowsMatchResult, fpml:TradeErrorResponse, fpml:TradeIncreaseResponse, fpml:TradeNotFound, fpml:TradeStatus, fpml:TradeTerminationResponse,
