Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: ReturnLegValuationPrice
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:Price
Containing Schema: fpml-eq-shared-4-4.xsd
Abstract

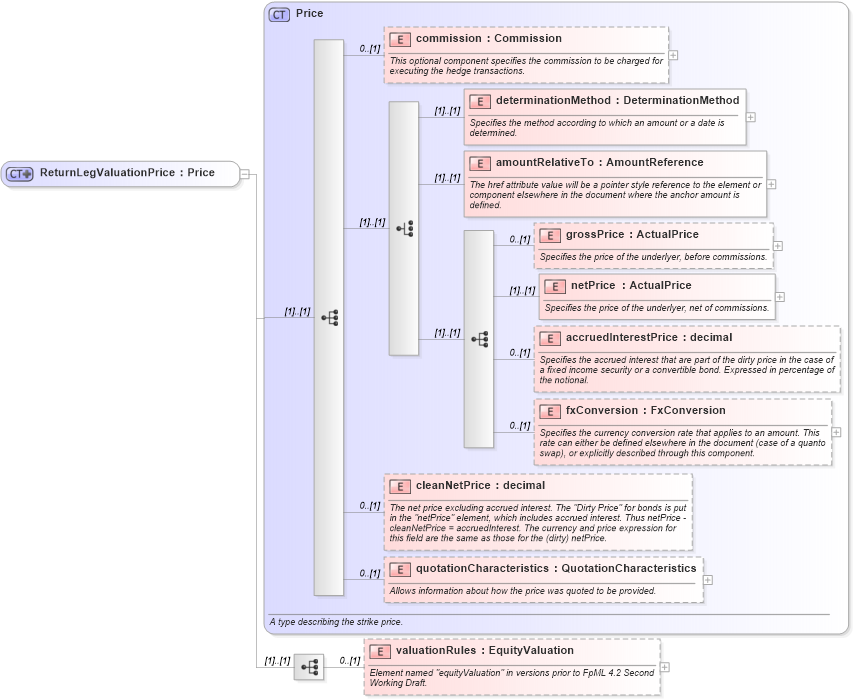

Collapse XSD Schema Diagram:
Drilldown into valuationRules in schema fpml-eq-shared-4-4_xsd Drilldown into quotationCharacteristics in schema fpml-asset-4-4_xsd Drilldown into cleanNetPrice in schema fpml-asset-4-4_xsd Drilldown into fxConversion in schema fpml-asset-4-4_xsd Drilldown into accruedInterestPrice in schema fpml-asset-4-4_xsd Drilldown into netPrice in schema fpml-asset-4-4_xsd Drilldown into grossPrice in schema fpml-asset-4-4_xsd Drilldown into amountRelativeTo in schema fpml-asset-4-4_xsd Drilldown into determinationMethod in schema fpml-asset-4-4_xsd Drilldown into commission in schema fpml-asset-4-4_xsd Drilldown into Price in schema fpml-asset-4-4_xsdXSD Diagram of ReturnLegValuationPrice in schema fpml-eq-shared-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="ReturnLegValuationPrice">
    <xsd:complexContent>
        <xsd:extension base="Price">
            <xsd:sequence>
                <xsd:element name="valuationRules" type="EquityValuation" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Element named "equityValuation" in versions prior to FpML 4.2 Second Working Draft.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
commission fpml:commission 0 (1)
determinationMethod fpml:determinationMethod (1) (1)
amountRelativeTo fpml:amountRelativeTo (1) (1)
grossPrice fpml:grossPrice 0 (1)
netPrice fpml:netPrice (1) (1)
accruedInterestPrice fpml:accruedInterestPrice 0 (1)
fxConversion fpml:fxConversion 0 (1)
cleanNetPrice fpml:cleanNetPrice 0 (1)
quotationCharacteristics fpml:quotationCharacteristics 0 (1)
valuationRules fpml:valuationRules 0 (1)
Collapse Derivation Tree:
Collapse References:
fpml:initialPrice, fpml:valuationPriceFinal, fpml:valuationPriceInterim
