Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: GenericDocumentReference
Namespace: http://www.openapplications.org/oagis
Type: nsC:DocumentReference
Containing Schema: Invoice.xsd
Abstract

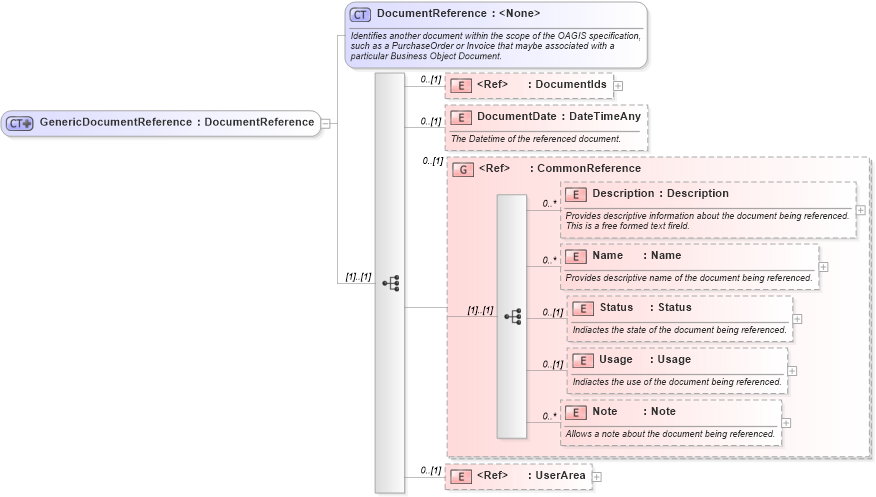

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema invoice_xsd Drilldown into Note in schema invoice_xsd Drilldown into Usage in schema invoice_xsd Drilldown into Status in schema invoice_xsd Drilldown into Name in schema invoice_xsd Drilldown into Description in schema invoice_xsd Drilldown into CommonReference in schema invoice_xsd Drilldown into DocumentDate in schema invoice_xsd Drilldown into DocumentIds in schema invoice_xsd Drilldown into DocumentReference in schema invoice_xsdXSD Diagram of GenericDocumentReference in schema invoice_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xs:complexType name="GenericDocumentReference">
    <xs:complexContent>
        <xs:extension base="DocumentReference">
            <xs:sequence>
                <xs:element ref="DocumentIds" minOccurs="0" />
                <xs:element name="DocumentDate" type="DateTimeAny" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation source="http://www.openapplications.org/oagis">The Datetime of the referenced document.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:group ref="CommonReference" minOccurs="0" />
                <xs:element ref="UserArea" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentIds nsC:DocumentIds 0 (1)
DocumentDate nsC:DocumentDate 0 (1)
Description nsC:Description 0 unbounded
Name nsC:Name 0 unbounded
Status nsC:Status 0 (1)
Usage nsC:Usage 0 (1)
Note nsC:Note 0 unbounded
UserArea nsC:UserArea 0 (1)
<xs:group> nsC:CommonReference 0 (1)
Collapse Derivation Tree:
Collapse References:
nsC:CatalogDocumentReference, nsC:LedgerDocumentReference, nsC:MaintenanceOrderReference, nsC:ProjectReference, nsC:UOMGroupReference
