Definition Type: ComplexType
Name: IndEmployeeType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: IndicativeData.xsd
Abstract

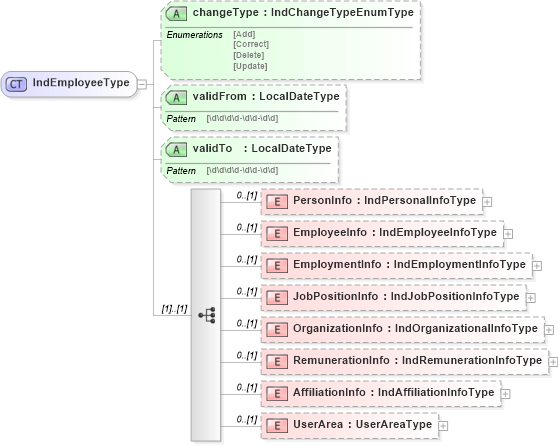

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema indicativedata_xsd Drilldown into AffiliationInfo in schema indicativedata_xsd Drilldown into RemunerationInfo in schema indicativedata_xsd Drilldown into OrganizationInfo in schema indicativedata_xsd Drilldown into JobPositionInfo in schema indicativedata_xsd Drilldown into EmploymentInfo in schema indicativedata_xsd Drilldown into EmployeeInfo in schema indicativedata_xsd Drilldown into PersonInfo in schema indicativedata_xsd Drilldown into validTo in schema indicativedata_xsd Drilldown into validFrom in schema indicativedata_xsd Drilldown into changeType in schema indicativedata_xsdXSD Diagram of IndEmployeeType in schema indicativedata_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="IndEmployeeType">
    <xsd:sequence>
        <xsd:element name="PersonInfo" type="IndPersonalInfoType" minOccurs="0" />
        <xsd:element name="EmployeeInfo" type="IndEmployeeInfoType" minOccurs="0" />
        <xsd:element name="EmploymentInfo" type="IndEmploymentInfoType" minOccurs="0" />
        <xsd:element name="JobPositionInfo" type="IndJobPositionInfoType" minOccurs="0" />
        <xsd:element name="OrganizationInfo" type="IndOrganizationalInfoType" minOccurs="0" />
        <xsd:element name="RemunerationInfo" type="IndRemunerationInfoType" minOccurs="0" />
        <xsd:element name="AffiliationInfo" type="IndAffiliationInfoType" minOccurs="0" />
        <xsd:element name="UserArea" type="UserAreaType" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="changeType" type="IndChangeTypeEnumType" />
    <xsd:attribute name="validFrom" type="LocalDateType" use="optional" />
    <xsd:attribute name="validTo" type="LocalDateType" use="optional" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PersonInfo hr:PersonInfo 0 (1)
EmployeeInfo hr:EmployeeInfo 0 (1)
EmploymentInfo hr:EmploymentInfo 0 (1)
JobPositionInfo hr:JobPositionInfo 0 (1)
OrganizationInfo hr:OrganizationInfo 0 (1)
RemunerationInfo hr:RemunerationInfo 0 (1)
AffiliationInfo hr:AffiliationInfo 0 (1)
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
changeType hr:changeType (Optional)
validFrom hr:validFrom Optional
validTo hr:validTo Optional
Collapse Derivation Tree:
Collapse References:
hr:Employee
