Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: NewHire
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:NewHireType
Containing Schema: NewHire.xsd
Abstract

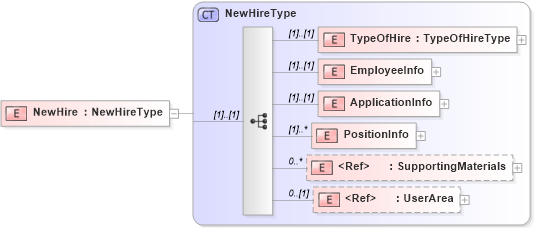

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into SupportingMaterials in schema supportingmaterials_xsd Drilldown into PositionInfo in schema newhire_xsd Drilldown into ApplicationInfo in schema newhire_xsd Drilldown into EmployeeInfo in schema newhire_xsd Drilldown into TypeOfHire in schema newhire_xsd Drilldown into NewHireType in schema newhire_xsdXSD Diagram of NewHire in schema newhire_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="NewHire" type="NewHireType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TypeOfHire hr:TypeOfHire (1) (1)
EmployeeInfo hr:EmployeeInfo (1) (1)
ApplicationInfo hr:ApplicationInfo (1) (1)
PositionInfo hr:PositionInfo (1) unbounded
SupportingMaterials hr:SupportingMaterials 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Derivation Tree:
