Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: OtherItemDetailType
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:ScreeningPersonalDataType
Containing Schema: BackgroundReports.xsd
Abstract

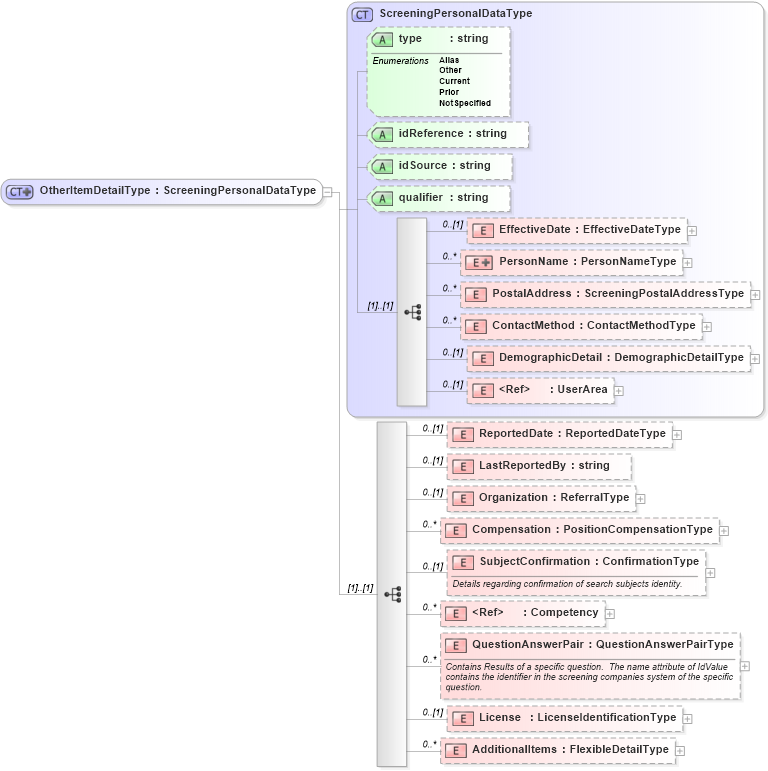

Collapse XSD Schema Diagram:
Drilldown into AdditionalItems in schema backgroundreports_xsd Drilldown into License in schema backgroundreports_xsd Drilldown into QuestionAnswerPair in schema backgroundreports_xsd Drilldown into Competency in schema competencies_xsd Drilldown into SubjectConfirmation in schema backgroundreports_xsd Drilldown into Compensation in schema backgroundreports_xsd Drilldown into Organization in schema backgroundreports_xsd Drilldown into LastReportedBy in schema backgroundreports_xsd Drilldown into ReportedDate in schema backgroundreports_xsd Drilldown into UserArea in schema userarea_xsd Drilldown into DemographicDetail in schema screeningtypes_xsd Drilldown into ContactMethod in schema screeningtypes_xsd Drilldown into PostalAddress in schema screeningtypes_xsd Drilldown into PersonName in schema screeningtypes_xsd Drilldown into EffectiveDate in schema screeningtypes_xsd Drilldown into qualifier in schema screeningtypes_xsd Drilldown into idSource in schema screeningtypes_xsd Drilldown into idReference in schema screeningtypes_xsd Drilldown into type in schema screeningtypes_xsd Drilldown into ScreeningPersonalDataType in schema screeningtypes_xsdXSD Diagram of OtherItemDetailType in schema backgroundreports_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="OtherItemDetailType">
    <xsd:complexContent>
        <xsd:extension base="ScreeningPersonalDataType">
            <xsd:sequence>
                <xsd:element name="ReportedDate" type="ReportedDateType" minOccurs="0" />
                <xsd:element name="LastReportedBy" type="xsd:string" minOccurs="0" />
                <xsd:element name="Organization" type="ReferralType" minOccurs="0" />
                <xsd:element name="Compensation" type="PositionCompensationType" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="SubjectConfirmation" type="ConfirmationType" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation>Details regarding confirmation of search subjects identity.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="Competency" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="QuestionAnswerPair" type="QuestionAnswerPairType" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation>Contains Results of a specific question.  The name attribute of IdValue contains the identifier in the screening companies system of the specific question.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="License" type="LicenseIdentificationType" minOccurs="0" />
                <xsd:element name="AdditionalItems" type="FlexibleDetailType" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EffectiveDate hr:EffectiveDate 0 (1)
PersonName hr:PersonName 0 unbounded
PostalAddress hr:PostalAddress 0 unbounded
ContactMethod hr:ContactMethod 0 unbounded
DemographicDetail hr:DemographicDetail 0 (1)
UserArea hr:UserArea 0 (1)
ReportedDate hr:ReportedDate 0 (1)
LastReportedBy hr:LastReportedBy 0 (1)
Organization hr:Organization 0 (1)
Compensation hr:Compensation 0 unbounded
SubjectConfirmation hr:SubjectConfirmation 0 (1)
Competency hr:Competency 0 unbounded
QuestionAnswerPair hr:QuestionAnswerPair 0 unbounded
License hr:License 0 (1)
AdditionalItems hr:AdditionalItems 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
type hr:type Optional
idReference hr:idReference Optional
idSource hr:idSource Optional
qualifier hr:qualifier Optional
Collapse Derivation Tree:
Collapse References:
hr:OtherScreeningDetail
