Definition Type: Element
Name: OtherScreeningDetail
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:OtherItemDetailType
Containing Schema: BackgroundReports.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

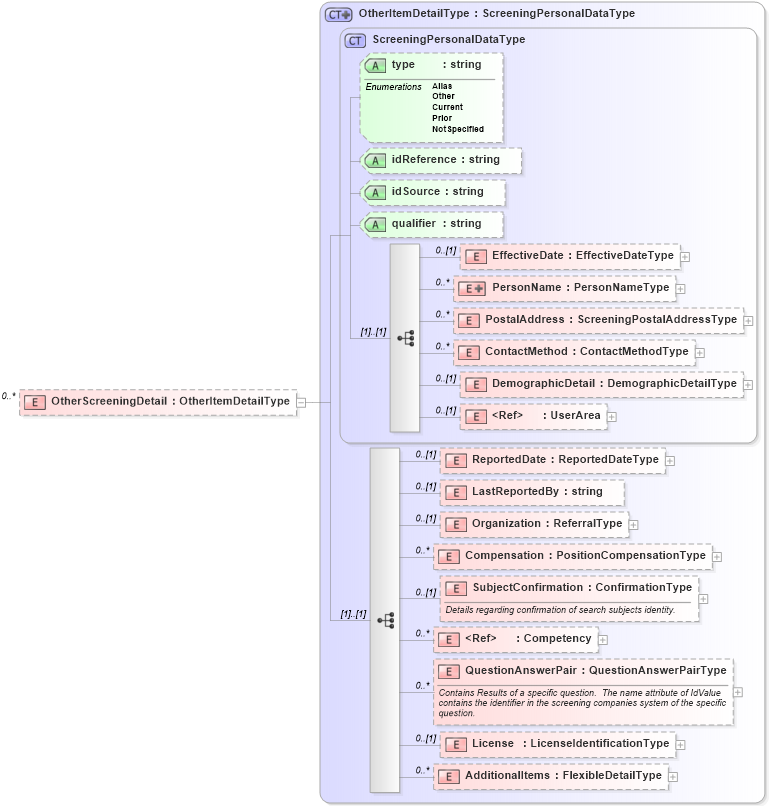

Collapse XSD Schema Diagram:
Drilldown into AdditionalItems in schema backgroundreports_xsd Drilldown into License in schema backgroundreports_xsd Drilldown into QuestionAnswerPair in schema backgroundreports_xsd Drilldown into Competency in schema competencies_xsd Drilldown into SubjectConfirmation in schema backgroundreports_xsd Drilldown into Compensation in schema backgroundreports_xsd Drilldown into Organization in schema backgroundreports_xsd Drilldown into LastReportedBy in schema backgroundreports_xsd Drilldown into ReportedDate in schema backgroundreports_xsd Drilldown into UserArea in schema userarea_xsd Drilldown into DemographicDetail in schema screeningtypes_xsd Drilldown into ContactMethod in schema screeningtypes_xsd Drilldown into PostalAddress in schema screeningtypes_xsd Drilldown into PersonName in schema screeningtypes_xsd Drilldown into EffectiveDate in schema screeningtypes_xsd Drilldown into qualifier in schema screeningtypes_xsd Drilldown into idSource in schema screeningtypes_xsd Drilldown into idReference in schema screeningtypes_xsd Drilldown into type in schema screeningtypes_xsd Drilldown into ScreeningPersonalDataType in schema screeningtypes_xsd Drilldown into OtherItemDetailType in schema backgroundreports_xsdXSD Diagram of OtherScreeningDetail in schema backgroundreports_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="OtherScreeningDetail" type="OtherItemDetailType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EffectiveDate hr:EffectiveDate 0 (1)
PersonName hr:PersonName 0 unbounded
PostalAddress hr:PostalAddress 0 unbounded
ContactMethod hr:ContactMethod 0 unbounded
DemographicDetail hr:DemographicDetail 0 (1)
UserArea hr:UserArea 0 (1)
ReportedDate hr:ReportedDate 0 (1)
LastReportedBy hr:LastReportedBy 0 (1)
Organization hr:Organization 0 (1)
Compensation hr:Compensation 0 unbounded
SubjectConfirmation hr:SubjectConfirmation 0 (1)
Competency hr:Competency 0 unbounded
QuestionAnswerPair hr:QuestionAnswerPair 0 unbounded
License hr:License 0 (1)
AdditionalItems hr:AdditionalItems 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
type hr:type Optional
idReference hr:idReference Optional
idSource hr:idSource Optional
qualifier hr:qualifier Optional
Collapse Derivation Tree:
