Definition Type: Element
Name: CSAInfo
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:csaInfoType
Containing Schema: mailxml_120308.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

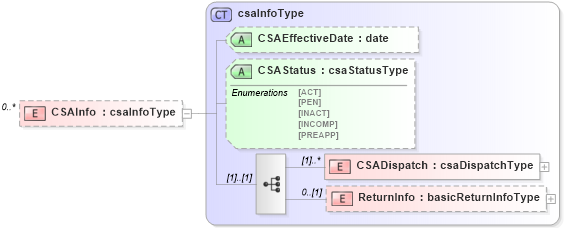

Collapse XSD Schema Diagram:
Drilldown into ReturnInfo in schema mailxml_120308_xsd Drilldown into CSADispatch in schema mailxml_120308_xsd Drilldown into CSAStatus in schema mailxml_120308_xsd Drilldown into CSAEffectiveDate in schema mailxml_120308_xsd Drilldown into csaInfoType in schema mailxml_120308_xsdXSD Diagram of CSAInfo in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="CSAInfo" type="mailxml:csaInfoType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CSADispatch mailxml:CSADispatch (1) unbounded
ReturnInfo mailxml:ReturnInfo 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
CSAEffectiveDate mailxml:CSAEffectiveDate (Optional)
CSAStatus mailxml:CSAStatus (Optional)
Collapse Derivation Tree:
