Documentation for Mail.XML - Mailing supply chain
Definition Type: ComplexType
Name: csaInfoType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract
Collapse XSD Schema Diagram:

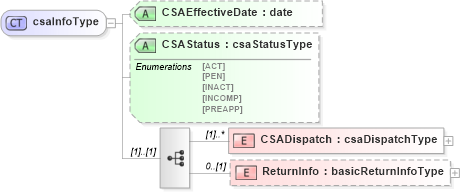

Drilldown into ReturnInfo in schema mailxml_120308_xsd Drilldown into CSADispatch in schema mailxml_120308_xsd Drilldown into CSAStatus in schema mailxml_120308_xsd Drilldown into CSAEffectiveDate in schema mailxml_120308_xsdXSD Diagram of csaInfoType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="csaInfoType">
    <xs:sequence>
        <xs:element name="CSADispatch" type="mailxml:csaDispatchType" maxOccurs="unbounded" />
        <xs:element name="ReturnInfo" type="mailxml:basicReturnInfoType" minOccurs="0" />
    </xs:sequence>
    <xs:attribute name="CSAEffectiveDate" type="xs:date" />
    <xs:attribute name="CSAStatus" type="mailxml_base:csaStatusType" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CSADispatch mailxml:CSADispatch (1) unbounded
ReturnInfo mailxml:ReturnInfo 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
CSAEffectiveDate mailxml:CSAEffectiveDate (Optional)
CSAStatus mailxml:CSAStatus (Optional)
Collapse Derivation Tree:
Collapse References:
mailxml:CSAInfo
