Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: PieceRangeBlock
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:pieceRangeBlockType
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

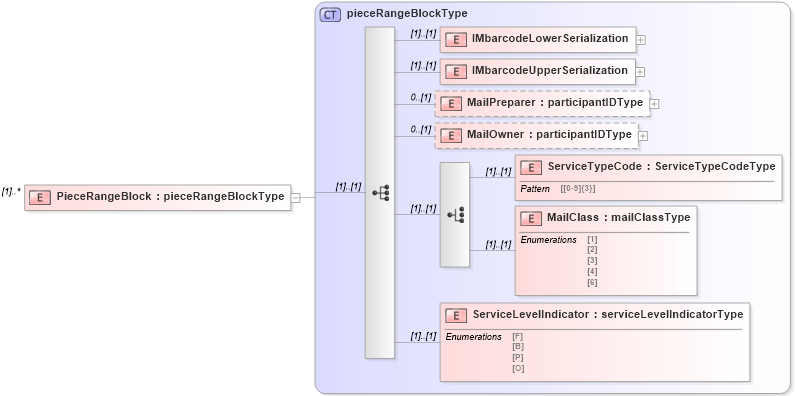

Collapse XSD Schema Diagram:
Drilldown into ServiceLevelIndicator in schema mailxml_120308_xsd Drilldown into MailClass in schema mailxml_120308_xsd Drilldown into ServiceTypeCode in schema mailxml_120308_xsd Drilldown into MailOwner in schema mailxml_120308_xsd Drilldown into MailPreparer in schema mailxml_120308_xsd Drilldown into IMbarcodeUpperSerialization in schema mailxml_120308_xsd Drilldown into IMbarcodeLowerSerialization in schema mailxml_120308_xsd Drilldown into pieceRangeBlockType in schema mailxml_120308_xsdXSD Diagram of PieceRangeBlock in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="PieceRangeBlock" type="mailxml:pieceRangeBlockType" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IMbarcodeLowerSerialization mailxml:IMbarcodeLowerSerialization (1) (1)
IMbarcodeUpperSerialization mailxml:IMbarcodeUpperSerialization (1) (1)
MailPreparer mailxml:MailPreparer 0 (1)
MailOwner mailxml:MailOwner 0 (1)
ServiceTypeCode mailxml:ServiceTypeCode (1) (1)
MailClass mailxml:MailClass (1) (1)
ServiceLevelIndicator mailxml:ServiceLevelIndicator (1) (1)
Collapse Derivation Tree:
