Documentation for Mail.XML - Mailing supply chain
Definition Type: ComplexType
Name: pieceRangeBlockType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract
Collapse XSD Schema Diagram:

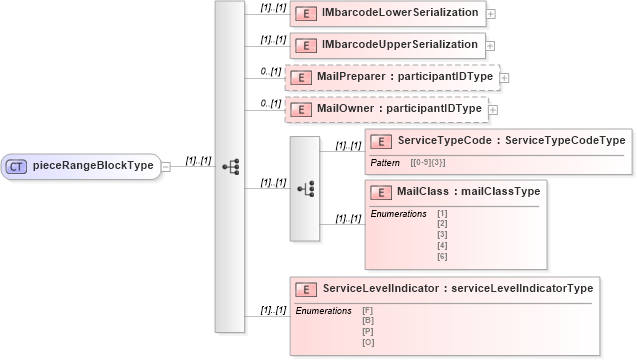

Drilldown into ServiceLevelIndicator in schema mailxml_120308_xsd Drilldown into MailClass in schema mailxml_120308_xsd Drilldown into ServiceTypeCode in schema mailxml_120308_xsd Drilldown into MailOwner in schema mailxml_120308_xsd Drilldown into MailPreparer in schema mailxml_120308_xsd Drilldown into IMbarcodeUpperSerialization in schema mailxml_120308_xsd Drilldown into IMbarcodeLowerSerialization in schema mailxml_120308_xsdXSD Diagram of pieceRangeBlockType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="pieceRangeBlockType">
    <xs:sequence>
        <xs:element name="IMbarcodeLowerSerialization">
            <xs:complexType>
                <xs:choice>
                    <xs:sequence>
                        <xs:element name="MailerID6" type="mailxml_base:mailerID6Type" />
                        <xs:element name="SerialNumber9" type="mailxml_base:iMBSerialNumber9Type" />
                    </xs:sequence>
                    <xs:sequence>
                        <xs:element name="MailerID9" type="mailxml_base:mailerID9Type" />
                        <xs:element name="SerialNumber6" type="mailxml_base:iMBSerialNumber6Type" />
                    </xs:sequence>
                </xs:choice>
            </xs:complexType>
        </xs:element>
        <xs:element name="IMbarcodeUpperSerialization">
            <xs:complexType>
                <xs:choice>
                    <xs:sequence>
                        <xs:element name="MailerID6" type="mailxml_base:mailerID6Type" />
                        <xs:element name="SerialNumber9" type="mailxml_base:iMBSerialNumber9Type" />
                    </xs:sequence>
                    <xs:sequence>
                        <xs:element name="MailerID9" type="mailxml_base:mailerID9Type" />
                        <xs:element name="SerialNumber6" type="mailxml_base:iMBSerialNumber6Type" />
                    </xs:sequence>
                </xs:choice>
            </xs:complexType>
        </xs:element>
        <xs:element name="MailPreparer" type="mailxml:participantIDType" minOccurs="0" />
        <xs:element name="MailOwner" type="mailxml:participantIDType" minOccurs="0" />
        <xs:choice>
            <xs:element name="ServiceTypeCode" type="mailxml_base:ServiceTypeCodeType" />
            <xs:element name="MailClass" type="mailxml_base:mailClassType" />
        </xs:choice>
        <xs:element name="ServiceLevelIndicator" type="mailxml_base:serviceLevelIndicatorType" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IMbarcodeLowerSerialization mailxml:IMbarcodeLowerSerialization (1) (1)
IMbarcodeUpperSerialization mailxml:IMbarcodeUpperSerialization (1) (1)
MailPreparer mailxml:MailPreparer 0 (1)
MailOwner mailxml:MailOwner 0 (1)
ServiceTypeCode mailxml:ServiceTypeCode (1) (1)
MailClass mailxml:MailClass (1) (1)
ServiceLevelIndicator mailxml:ServiceLevelIndicator (1) (1)
Collapse Derivation Tree:
Collapse References:
mailxml:PieceRangeBlock, mailxml:PieceRangeBlock
