Definition Type: ComplexType
Name: Step
Namespace: http://www.openapplications.org/oagis
Containing Schema: MfgComponents.xsd
Abstract
Collapse XSD Schema Diagram:

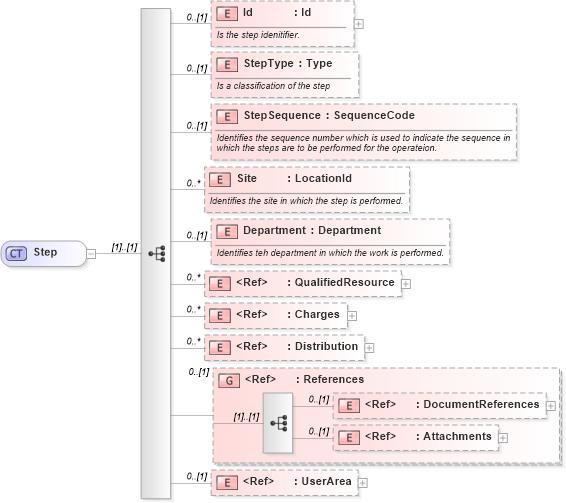

Drilldown into UserArea in schema meta_xsd Drilldown into Attachments in schema components_xsd Drilldown into DocumentReferences in schema components_xsd Drilldown into References in schema components_xsd Drilldown into Distribution in schema components_xsd Drilldown into Charges in schema components_xsd Drilldown into QualifiedResource in schema mfgcomponents_xsd Drilldown into Department in schema mfgcomponents_xsd Drilldown into Site in schema mfgcomponents_xsd Drilldown into StepSequence in schema mfgcomponents_xsd Drilldown into StepType in schema mfgcomponents_xsd Drilldown into Id in schema mfgcomponents_xsdXSD Diagram of Step in schema mfgcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:complexType name="Step">
    <xs:sequence>
        <xs:element name="Id" type="Id" minOccurs="0">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Is the step idenitifier.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="StepType" type="Type" minOccurs="0">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Is a classification of the step</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="StepSequence" type="SequenceCode" minOccurs="0">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Identifies the sequence number which is used to indicate the sequence in which the steps are to be performed for the operateion.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="Site" type="LocationId" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Identifies the site in which the step is performed.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="Department" type="Department" minOccurs="0">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Identifies teh department in which the work is performed.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element ref="QualifiedResource" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="Charges" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="Distribution" minOccurs="0" maxOccurs="unbounded" />
        <xs:group ref="References" minOccurs="0" />
        <xs:element ref="UserArea" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Id oa:Id 0 (1)
StepType oa:StepType 0 (1)
StepSequence oa:StepSequence 0 (1)
Site oa:Site 0 unbounded
Department oa:Department 0 (1)
QualifiedResource oa:QualifiedResource 0 unbounded
Charges oa:Charges 0 unbounded
Distribution oa:Distribution 0 unbounded
DocumentReferences oa:DocumentReferences 0 (1)
Attachments oa:Attachments 0 (1)
UserArea oa:UserArea 0 (1)
<xs:group> oa:References 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:Step
