Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: AttachmentBaseType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract

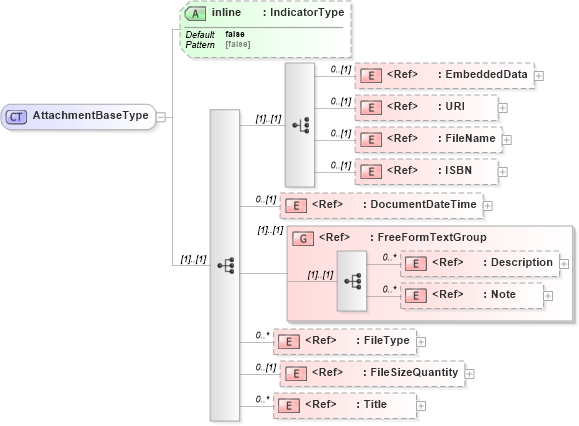

Collapse XSD Schema Diagram:
Drilldown into Title in schema fields_xsd Drilldown into FileSizeQuantity in schema fields_xsd Drilldown into FileType in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into ISBN in schema fields_xsd Drilldown into FileName in schema fields_xsd Drilldown into URI in schema fields_xsd Drilldown into EmbeddedData in schema fields_xsd Drilldown into inline in schema components_xsdXSD Diagram of AttachmentBaseType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="AttachmentBaseType">
    <xsd:sequence>
        <xsd:choice>
            <xsd:element ref="EmbeddedData" minOccurs="0" />
            <xsd:element ref="URI" minOccurs="0" />
            <xsd:element ref="FileName" minOccurs="0" />
            <xsd:element ref="ISBN" minOccurs="0" />
        </xsd:choice>
        <xsd:element ref="DocumentDateTime" minOccurs="0" />
        <xsd:group ref="FreeFormTextGroup" />
        <xsd:element ref="FileType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FileSizeQuantity" minOccurs="0" />
        <xsd:element ref="Title" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="inline" type="IndicatorType" default="false" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EmbeddedData nsA:EmbeddedData 0 (1)
URI nsA:URI 0 (1)
FileName nsA:FileName 0 (1)
ISBN nsA:ISBN 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
FileType nsA:FileType 0 unbounded
FileSizeQuantity nsA:FileSizeQuantity 0 (1)
Title nsA:Title 0 unbounded
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
inline nsA:inline false (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:ImageAttachmentType, nsA:SemanticAttachmentType
