Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: OpenAttachmentType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:SemanticAttachmentType
Containing Schema: Components.xsd
Abstract

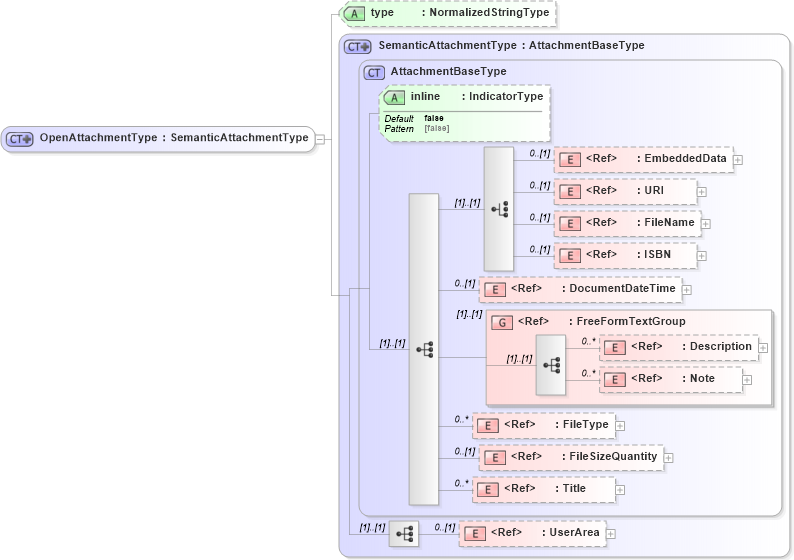

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Title in schema fields_xsd Drilldown into FileSizeQuantity in schema fields_xsd Drilldown into FileType in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into ISBN in schema fields_xsd Drilldown into FileName in schema fields_xsd Drilldown into URI in schema fields_xsd Drilldown into EmbeddedData in schema fields_xsd Drilldown into inline in schema components_xsd Drilldown into AttachmentBaseType in schema components_xsd Drilldown into SemanticAttachmentType in schema components_xsd Drilldown into type in schema components_xsdXSD Diagram of OpenAttachmentType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="OpenAttachmentType">
    <xsd:complexContent>
        <xsd:extension base="SemanticAttachmentType">
            <xsd:attribute name="type" type="NormalizedStringType" use="optional" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EmbeddedData nsA:EmbeddedData 0 (1)
URI nsA:URI 0 (1)
FileName nsA:FileName 0 (1)
ISBN nsA:ISBN 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
FileType nsA:FileType 0 unbounded
FileSizeQuantity nsA:FileSizeQuantity 0 (1)
Title nsA:Title 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
inline nsA:inline false (Optional)
type nsA:type Optional
Collapse Derivation Tree:
Collapse References:
nsA:Attachment
