Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: CRMHeaderType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:StatusEnabledHeaderType
Containing Schema: CRMComponents.xsd
Abstract

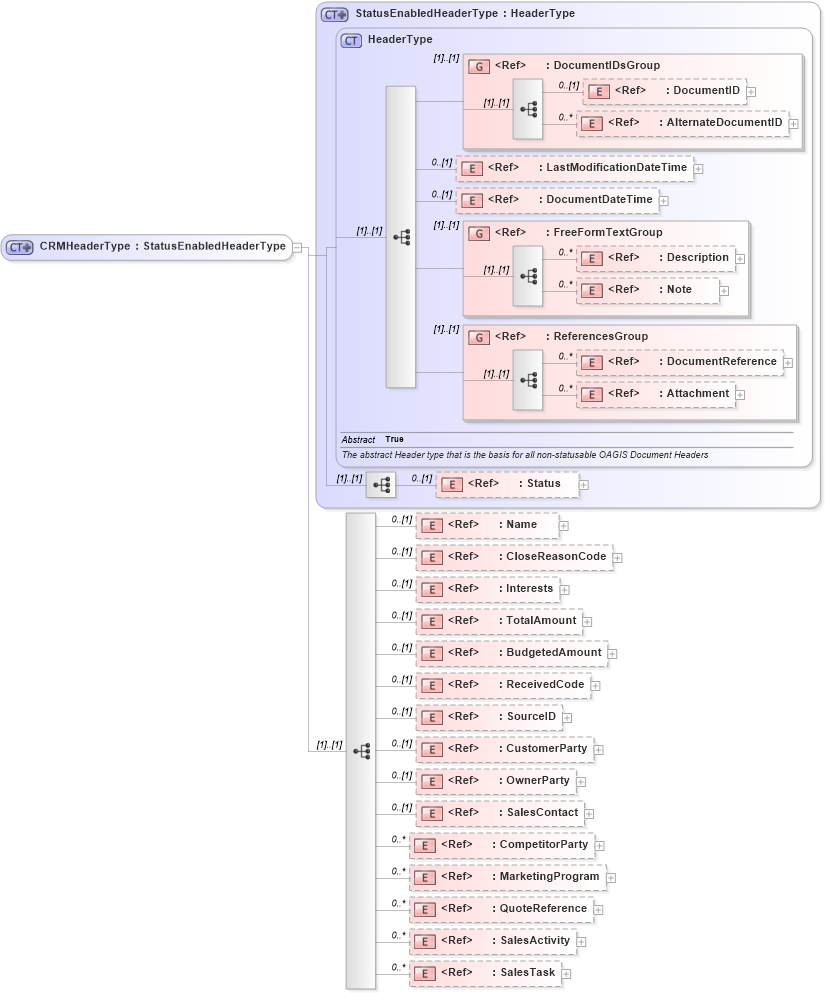

Collapse XSD Schema Diagram:
Drilldown into SalesTask in schema crmcomponents_xsd Drilldown into SalesActivity in schema crmcomponents_xsd Drilldown into QuoteReference in schema components_xsd Drilldown into MarketingProgram in schema crmcomponents_xsd Drilldown into CompetitorParty in schema components_xsd Drilldown into SalesContact in schema components_xsd Drilldown into OwnerParty in schema components_xsd Drilldown into CustomerParty in schema components_xsd Drilldown into SourceID in schema fields_xsd Drilldown into ReceivedCode in schema fields_xsd Drilldown into BudgetedAmount in schema fields_xsd Drilldown into TotalAmount in schema fields_xsd Drilldown into Interests in schema components_xsd Drilldown into CloseReasonCode in schema fields_xsd Drilldown into Name in schema fields_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsd Drilldown into StatusEnabledHeaderType in schema components_xsdXSD Diagram of CRMHeaderType in schema crmcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="CRMHeaderType">
    <xsd:complexContent>
        <xsd:extension base="StatusEnabledHeaderType">
            <xsd:sequence>
                <xsd:element ref="Name" minOccurs="0" />
                <xsd:element ref="CloseReasonCode" minOccurs="0" />
                <xsd:element ref="Interests" minOccurs="0" />
                <xsd:element ref="TotalAmount" minOccurs="0" />
                <xsd:element ref="BudgetedAmount" minOccurs="0" />
                <xsd:element ref="ReceivedCode" minOccurs="0" />
                <xsd:element ref="SourceID" minOccurs="0" />
                <xsd:element ref="CustomerParty" minOccurs="0" />
                <xsd:element ref="OwnerParty" minOccurs="0" />
                <xsd:element ref="SalesContact" minOccurs="0" />
                <xsd:element ref="CompetitorParty" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="MarketingProgram" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="QuoteReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="SalesActivity" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="SalesTask" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
Name nsA:Name 0 (1)
CloseReasonCode nsA:CloseReasonCode 0 (1)
Interests nsA:Interests 0 (1)
TotalAmount nsA:TotalAmount 0 (1)
BudgetedAmount nsA:BudgetedAmount 0 (1)
ReceivedCode nsA:ReceivedCode 0 (1)
SourceID nsA:SourceID 0 (1)
CustomerParty nsA:CustomerParty 0 (1)
OwnerParty nsA:OwnerParty 0 (1)
SalesContact nsA:SalesContact 0 (1)
CompetitorParty nsA:CompetitorParty 0 unbounded
MarketingProgram nsA:MarketingProgram 0 unbounded
QuoteReference nsA:QuoteReference 0 unbounded
SalesActivity nsA:SalesActivity 0 unbounded
SalesTask nsA:SalesTask 0 unbounded
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:OpportunityHeaderType, nsA:SalesLeadHeaderType
