Definition Type: Element
Name: EngineeringChangeDetail
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:EngineeringChangeLineType
Containing Schema: EngineeringChangeOrder.xsd
Abstract

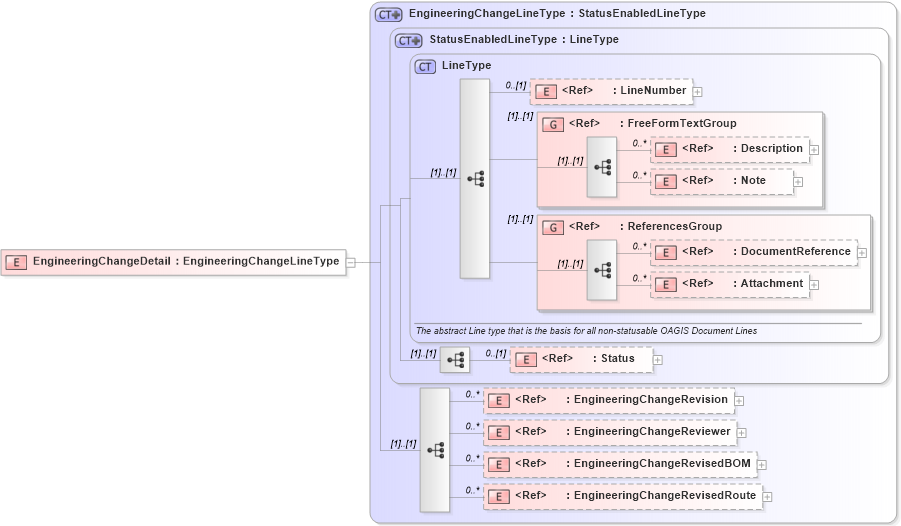

Collapse XSD Schema Diagram:
Drilldown into EngineeringChangeRevisedRoute in schema engineeringchangeorder_xsd Drilldown into EngineeringChangeRevisedBOM in schema engineeringchangeorder_xsd Drilldown into EngineeringChangeReviewer in schema engineeringchangeorder_xsd Drilldown into EngineeringChangeRevision in schema engineeringchangeorder_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into StatusEnabledLineType in schema components_xsd Drilldown into EngineeringChangeLineType in schema engineeringchangeorder_xsdXSD Diagram of EngineeringChangeDetail in schema engineeringchangeorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="EngineeringChangeDetail" type="EngineeringChangeLineType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
EngineeringChangeRevision nsA:EngineeringChangeRevision 0 unbounded
EngineeringChangeReviewer nsA:EngineeringChangeReviewer 0 unbounded
EngineeringChangeRevisedBOM nsA:EngineeringChangeRevisedBOM 0 unbounded
EngineeringChangeRevisedRoute nsA:EngineeringChangeRevisedRoute 0 unbounded
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
