Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: InventoryConsumptionHeaderType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:HeaderType
Containing Schema: InventoryConsumption.xsd
Abstract

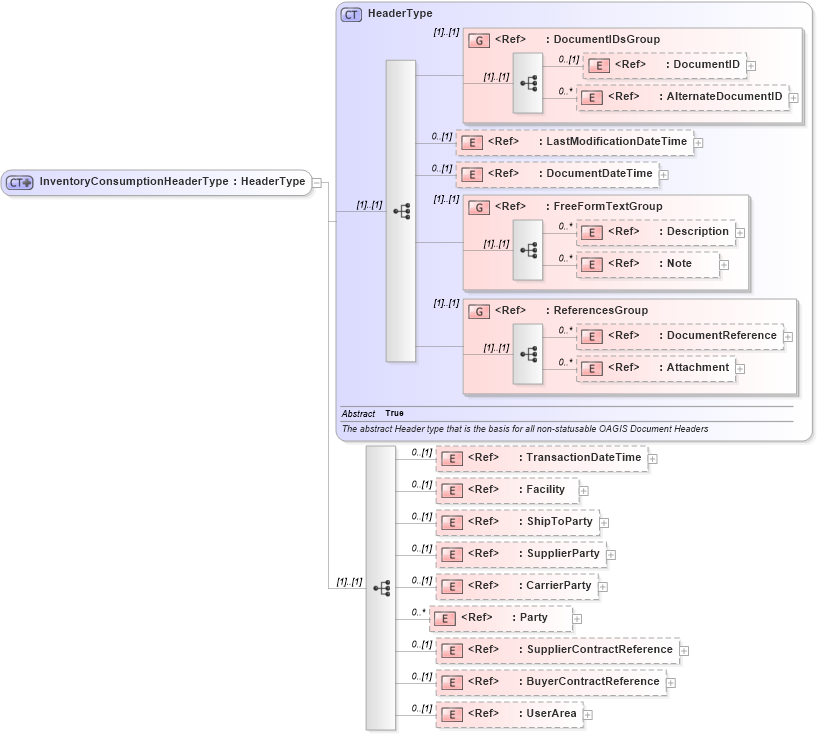

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into BuyerContractReference in schema components_xsd Drilldown into SupplierContractReference in schema components_xsd Drilldown into Party in schema components_xsd Drilldown into CarrierParty in schema components_xsd Drilldown into SupplierParty in schema components_xsd Drilldown into ShipToParty in schema components_xsd Drilldown into Facility in schema components_xsd Drilldown into TransactionDateTime in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsdXSD Diagram of InventoryConsumptionHeaderType in schema inventoryconsumption_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="InventoryConsumptionHeaderType">
    <xsd:complexContent>
        <xsd:extension base="HeaderType">
            <xsd:sequence>
                <xsd:element ref="TransactionDateTime" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Datetime at which the item consumption is reported</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="Facility" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Identifies the location where the items are consumed. This can be specified on the header or the lines. Any value specified at line level over-rides the header value.</xsd:documentation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Identifies the location where the items are consumed. This can be specified on the header or the lines. Any value specified at line level over-rides the header value.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ShipToParty" minOccurs="0" />
                <xsd:element ref="SupplierParty" minOccurs="0" />
                <xsd:element ref="CarrierParty" minOccurs="0" />
                <xsd:element ref="Party" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="SupplierContractReference" minOccurs="0" />
                <xsd:element ref="BuyerContractReference" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
TransactionDateTime nsA:TransactionDateTime 0 (1)
Facility nsA:Facility 0 (1)
ShipToParty nsA:ShipToParty 0 (1)
SupplierParty nsA:SupplierParty 0 (1)
CarrierParty nsA:CarrierParty 0 (1)
Party nsA:Party 0 unbounded
SupplierContractReference nsA:SupplierContractReference 0 (1)
BuyerContractReference nsA:BuyerContractReference 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:InventoryConsumptionHeader
