Definition Type: ComplexType
Name: InventoryConsumptionLineType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:LineType
Containing Schema: InventoryConsumption.xsd
Abstract

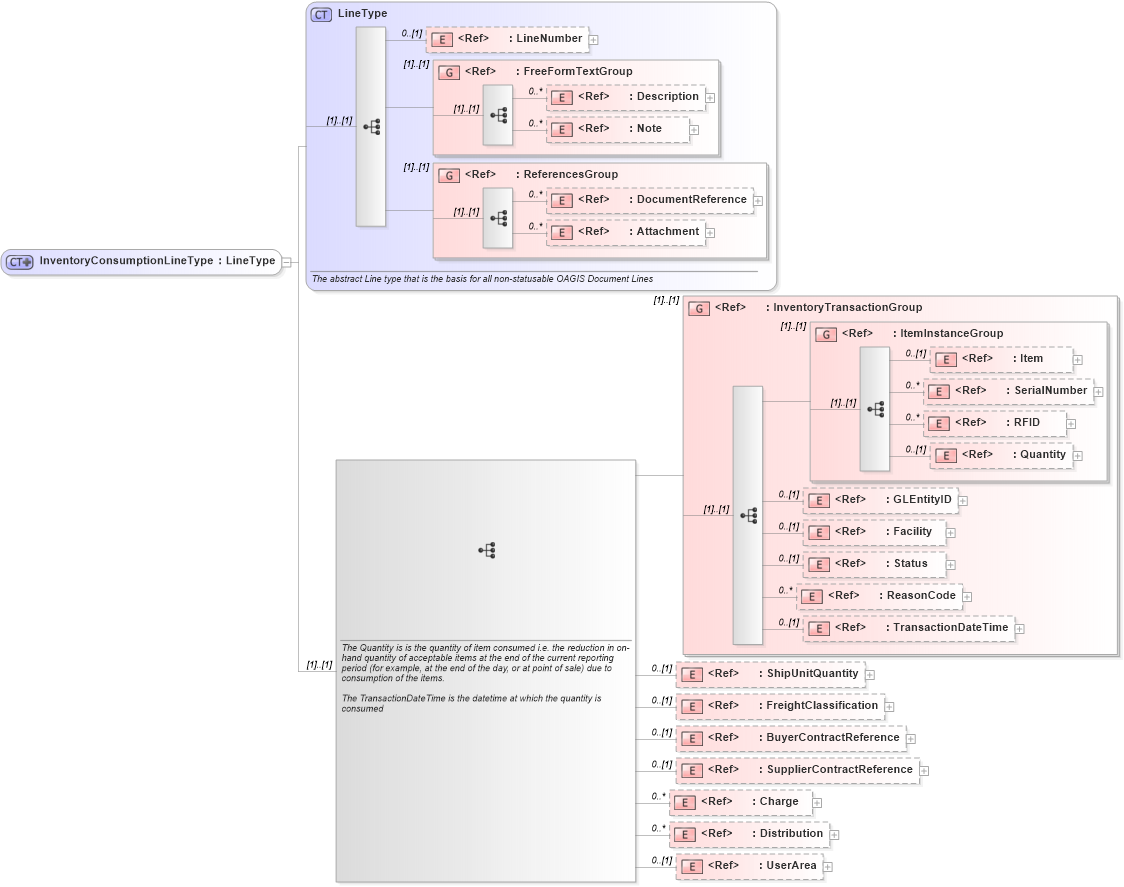

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Distribution in schema components_xsd Drilldown into Charge in schema components_xsd Drilldown into SupplierContractReference in schema components_xsd Drilldown into BuyerContractReference in schema components_xsd Drilldown into FreightClassification in schema components_xsd Drilldown into ShipUnitQuantity in schema fields_xsd Drilldown into TransactionDateTime in schema fields_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into Status in schema components_xsd Drilldown into Facility in schema components_xsd Drilldown into GLEntityID in schema fields_xsd Drilldown into Quantity in schema fields_xsd Drilldown into RFID in schema fields_xsd Drilldown into SerialNumber in schema fields_xsd Drilldown into Item in schema components_xsd Drilldown into ItemInstanceGroup in schema components_xsd Drilldown into InventoryTransactionGroup in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsdXSD Diagram of InventoryConsumptionLineType in schema inventoryconsumption_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="InventoryConsumptionLineType">
    <xsd:complexContent>
        <xsd:extension base="LineType">
            <xsd:sequence>
                <xsd:annotation>
                    <xsd:documentation>The Quantity is is the quantity of item consumed i.e. the reduction in on-hand quantity of acceptable items at the end of the current reporting period (for example, at the end of the day, or at point of sale) due to consumption of the items.

The TransactionDateTime is the datetime at which the quantity is consumed</xsd:documentation>
                </xsd:annotation>
                <xsd:group ref="InventoryTransactionGroup" />
                <xsd:element ref="ShipUnitQuantity" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">This contains the quantity of units or things shipped. This represents the container(s), not the product shipped.  An example of this is "4 truck loads" or "2 wooden crates"</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="FreightClassification" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Classifies the items being consumed for transportation.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="BuyerContractReference" minOccurs="0" />
                <xsd:element ref="SupplierContractReference" minOccurs="0" />
                <xsd:element ref="Charge" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Distribution" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Item nsA:Item 0 (1)
SerialNumber nsA:SerialNumber 0 unbounded
RFID nsA:RFID 0 unbounded
Quantity nsA:Quantity 0 (1)
GLEntityID nsA:GLEntityID 0 (1)
Facility nsA:Facility 0 (1)
Status nsA:Status 0 (1)
ReasonCode nsA:ReasonCode 0 unbounded
TransactionDateTime nsA:TransactionDateTime 0 (1)
ShipUnitQuantity nsA:ShipUnitQuantity 0 (1)
FreightClassification nsA:FreightClassification 0 (1)
BuyerContractReference nsA:BuyerContractReference 0 (1)
SupplierContractReference nsA:SupplierContractReference 0 (1)
Charge nsA:Charge 0 unbounded
Distribution nsA:Distribution 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
<xs:group> nsA:InventoryTransactionGroup (1) (1)
<xs:group> nsA:ItemInstanceGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:InventoryConsumptionLine
