Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: InvoiceLedgerEntryHeader
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:InvoiceLedgerEntryHeaderType
Containing Schema: InvoiceLedgerEntry.xsd
Abstract
Documentation:
Information that applies to the entire unapproved invoice document. The InvoiceReference in the Header is a reference to the external invoice that is being referred to in the document. The Voucher Reference is an internal voucher, possibly against the external invoice The Tax element contains any tax information such as the taxable amounts and the tax codes. It is optional and used to summarize tax amounts across all the document lines. The principal intent of this data type is for use as a memo item

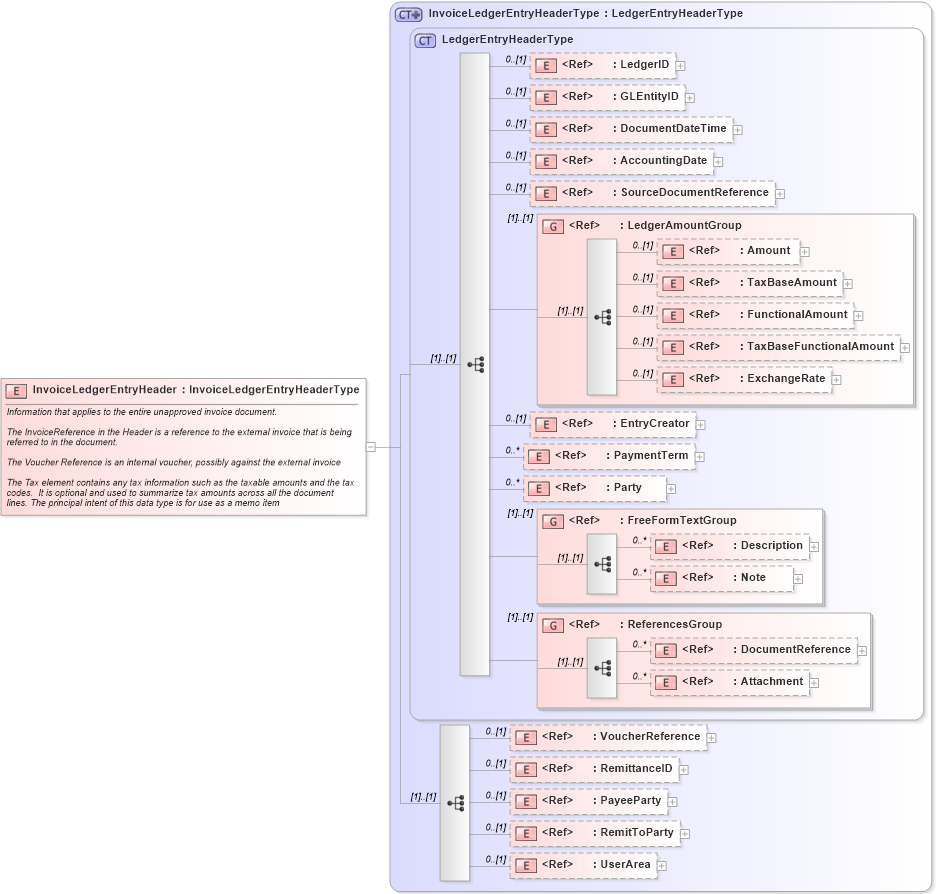

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into RemitToParty in schema components_xsd Drilldown into PayeeParty in schema components_xsd Drilldown into RemittanceID in schema fields_xsd Drilldown into VoucherReference in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into Party in schema components_xsd Drilldown into PaymentTerm in schema components_xsd Drilldown into EntryCreator in schema components_xsd Drilldown into ExchangeRate in schema components_xsd Drilldown into TaxBaseFunctionalAmount in schema fields_xsd Drilldown into FunctionalAmount in schema fields_xsd Drilldown into TaxBaseAmount in schema fields_xsd Drilldown into Amount in schema fields_xsd Drilldown into LedgerAmountGroup in schema components_xsd1 Drilldown into SourceDocumentReference in schema components_xsd1 Drilldown into AccountingDate in schema components_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into GLEntityID in schema fields_xsd Drilldown into LedgerID in schema fields_xsd Drilldown into LedgerEntryHeaderType in schema components_xsd1 Drilldown into InvoiceLedgerEntryHeaderType in schema invoiceledgerentry_xsdXSD Diagram of InvoiceLedgerEntryHeader in schema invoiceledgerentry_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="InvoiceLedgerEntryHeader" type="InvoiceLedgerEntryHeaderType">
    <xsd:annotation>
        <xsd:documentation>Information that applies to the entire unapproved invoice document.

The InvoiceReference in the Header is a reference to the external invoice that is being referred to in the document.

The Voucher Reference is an internal voucher, possibly against the external invoice

The Tax element contains any tax information such as the taxable amounts and the tax codes.  It is optional and used to summarize tax amounts across all the document lines. The principal intent of this data type is for use as a memo item</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LedgerID nsA:LedgerID 0 (1)
GLEntityID nsA:GLEntityID 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
AccountingDate nsA:AccountingDate 0 (1)
SourceDocumentReference nsA:SourceDocumentReference 0 (1)
Amount nsA:Amount 0 (1)
TaxBaseAmount nsA:TaxBaseAmount 0 (1)
FunctionalAmount nsA:FunctionalAmount 0 (1)
TaxBaseFunctionalAmount nsA:TaxBaseFunctionalAmount 0 (1)
ExchangeRate nsA:ExchangeRate 0 (1)
EntryCreator nsA:EntryCreator 0 (1)
PaymentTerm nsA:PaymentTerm 0 unbounded
Party nsA:Party 0 unbounded
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
VoucherReference nsA:VoucherReference 0 (1)
RemittanceID nsA:RemittanceID 0 (1)
PayeeParty nsA:PayeeParty 0 (1)
RemitToParty nsA:RemitToParty 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:LedgerAmountGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
