Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: InvoiceLedgerEntryHeaderType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:LedgerEntryHeaderType
Containing Schema: InvoiceLedgerEntry.xsd
Abstract

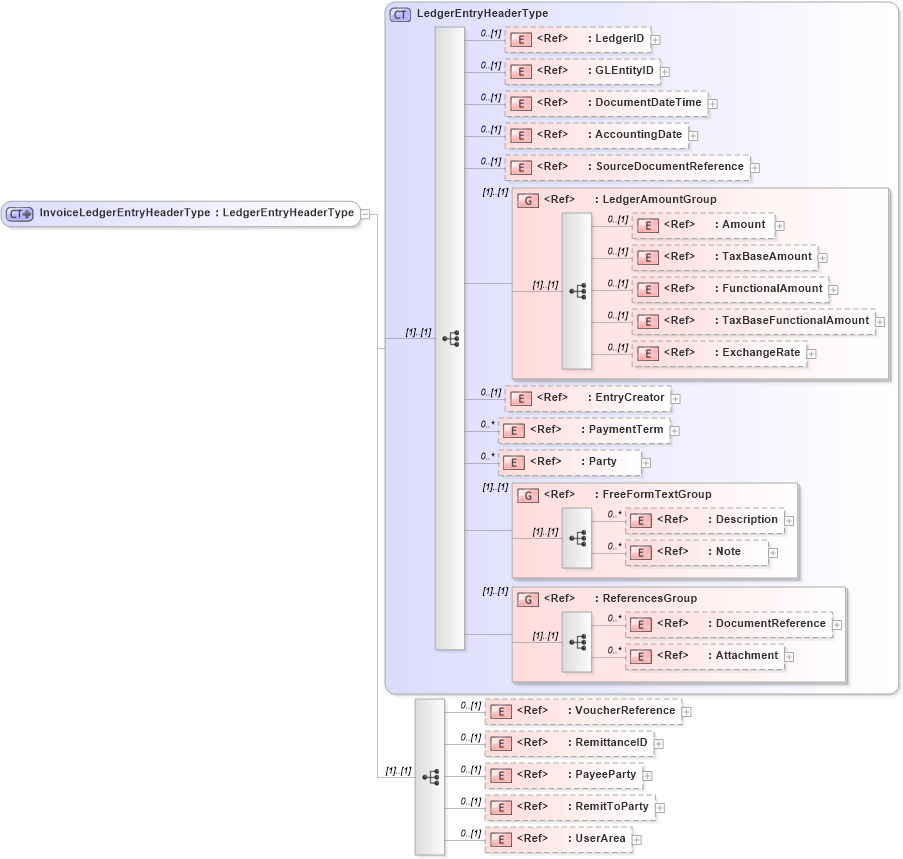

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into RemitToParty in schema components_xsd Drilldown into PayeeParty in schema components_xsd Drilldown into RemittanceID in schema fields_xsd Drilldown into VoucherReference in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into Party in schema components_xsd Drilldown into PaymentTerm in schema components_xsd Drilldown into EntryCreator in schema components_xsd Drilldown into ExchangeRate in schema components_xsd Drilldown into TaxBaseFunctionalAmount in schema fields_xsd Drilldown into FunctionalAmount in schema fields_xsd Drilldown into TaxBaseAmount in schema fields_xsd Drilldown into Amount in schema fields_xsd Drilldown into LedgerAmountGroup in schema components_xsd1 Drilldown into SourceDocumentReference in schema components_xsd1 Drilldown into AccountingDate in schema components_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into GLEntityID in schema fields_xsd Drilldown into LedgerID in schema fields_xsd Drilldown into LedgerEntryHeaderType in schema components_xsd1XSD Diagram of InvoiceLedgerEntryHeaderType in schema invoiceledgerentry_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="InvoiceLedgerEntryHeaderType">
    <xsd:complexContent>
        <xsd:extension base="LedgerEntryHeaderType">
            <xsd:sequence>
                <xsd:element ref="VoucherReference" minOccurs="0" />
                <xsd:element ref="RemittanceID" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation>This refers to a reference identifier to print on remittance advice, for example, supplier invoice number</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="PayeeParty" minOccurs="0" />
                <xsd:element ref="RemitToParty" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LedgerID nsA:LedgerID 0 (1)
GLEntityID nsA:GLEntityID 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
AccountingDate nsA:AccountingDate 0 (1)
SourceDocumentReference nsA:SourceDocumentReference 0 (1)
Amount nsA:Amount 0 (1)
TaxBaseAmount nsA:TaxBaseAmount 0 (1)
FunctionalAmount nsA:FunctionalAmount 0 (1)
TaxBaseFunctionalAmount nsA:TaxBaseFunctionalAmount 0 (1)
ExchangeRate nsA:ExchangeRate 0 (1)
EntryCreator nsA:EntryCreator 0 (1)
PaymentTerm nsA:PaymentTerm 0 unbounded
Party nsA:Party 0 unbounded
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
VoucherReference nsA:VoucherReference 0 (1)
RemittanceID nsA:RemittanceID 0 (1)
PayeeParty nsA:PayeeParty 0 (1)
RemitToParty nsA:RemitToParty 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:LedgerAmountGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:InvoiceLedgerEntryHeader
