Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: MatchDocumentHeaderType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:StatusEnabledHeaderType
Containing Schema: MatchDocument.xsd
Abstract

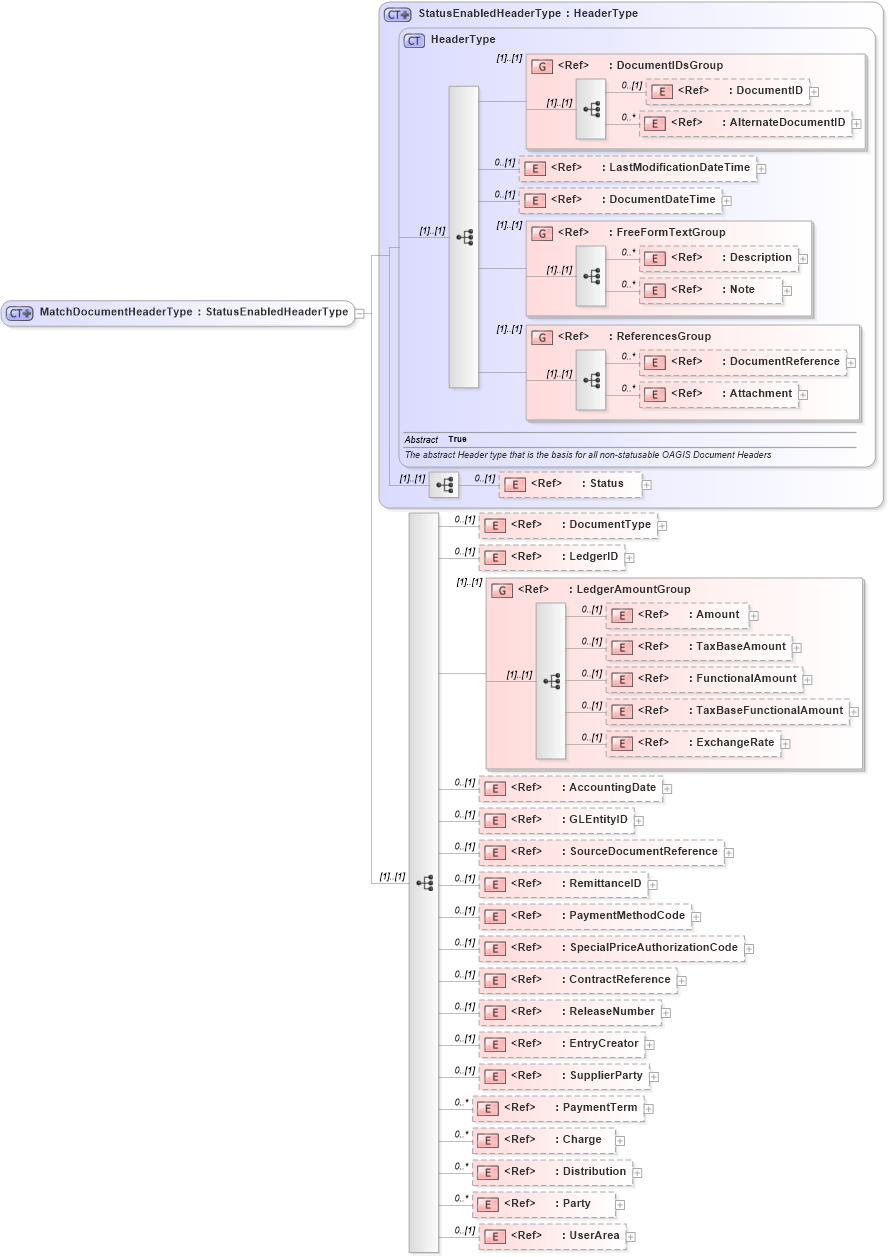

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Party in schema components_xsd Drilldown into Distribution in schema components_xsd Drilldown into Charge in schema components_xsd Drilldown into PaymentTerm in schema components_xsd Drilldown into SupplierParty in schema components_xsd Drilldown into EntryCreator in schema components_xsd Drilldown into ReleaseNumber in schema fields_xsd Drilldown into ContractReference in schema components_xsd Drilldown into SpecialPriceAuthorizationCode in schema fields_xsd Drilldown into PaymentMethodCode in schema fields_xsd Drilldown into RemittanceID in schema fields_xsd Drilldown into SourceDocumentReference in schema components_xsd1 Drilldown into GLEntityID in schema fields_xsd Drilldown into AccountingDate in schema components_xsd Drilldown into ExchangeRate in schema components_xsd Drilldown into TaxBaseFunctionalAmount in schema fields_xsd Drilldown into FunctionalAmount in schema fields_xsd Drilldown into TaxBaseAmount in schema fields_xsd Drilldown into Amount in schema fields_xsd Drilldown into LedgerAmountGroup in schema components_xsd1 Drilldown into LedgerID in schema fields_xsd Drilldown into DocumentType in schema fields_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsd Drilldown into StatusEnabledHeaderType in schema components_xsdXSD Diagram of MatchDocumentHeaderType in schema matchdocument_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="MatchDocumentHeaderType">
    <xsd:complexContent>
        <xsd:extension base="StatusEnabledHeaderType">
            <xsd:sequence>
                <xsd:element ref="DocumentType" minOccurs="0" />
                <xsd:element ref="LedgerID" minOccurs="0" />
                <xsd:group ref="LedgerAmountGroup" />
                <xsd:element ref="AccountingDate" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is the date that is used to determine the accounting period the transaction is posted within.  It is also known as the effective or post date.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="GLEntityID" minOccurs="0" />
                <xsd:element ref="SourceDocumentReference" minOccurs="0" />
                <xsd:element ref="RemittanceID" minOccurs="0" />
                <xsd:element ref="PaymentMethodCode" minOccurs="0" />
                <xsd:element ref="SpecialPriceAuthorizationCode" minOccurs="0" />
                <xsd:element ref="ContractReference" minOccurs="0" />
                <xsd:element ref="ReleaseNumber" minOccurs="0" />
                <xsd:element ref="EntryCreator" minOccurs="0" />
                <xsd:element ref="SupplierParty" minOccurs="0" />
                <xsd:element ref="PaymentTerm" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Charge" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Distribution" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Party" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
DocumentType nsA:DocumentType 0 (1)
LedgerID nsA:LedgerID 0 (1)
Amount nsA:Amount 0 (1)
TaxBaseAmount nsA:TaxBaseAmount 0 (1)
FunctionalAmount nsA:FunctionalAmount 0 (1)
TaxBaseFunctionalAmount nsA:TaxBaseFunctionalAmount 0 (1)
ExchangeRate nsA:ExchangeRate 0 (1)
AccountingDate nsA:AccountingDate 0 (1)
GLEntityID nsA:GLEntityID 0 (1)
SourceDocumentReference nsA:SourceDocumentReference 0 (1)
RemittanceID nsA:RemittanceID 0 (1)
PaymentMethodCode nsA:PaymentMethodCode 0 (1)
SpecialPriceAuthorizationCode nsA:SpecialPriceAuthorizationCode 0 (1)
ContractReference nsA:ContractReference 0 (1)
ReleaseNumber nsA:ReleaseNumber 0 (1)
EntryCreator nsA:EntryCreator 0 (1)
SupplierParty nsA:SupplierParty 0 (1)
PaymentTerm nsA:PaymentTerm 0 unbounded
Charge nsA:Charge 0 unbounded
Distribution nsA:Distribution 0 unbounded
Party nsA:Party 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
<xs:group> nsA:LedgerAmountGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:MatchDocumentHeader
