Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: MoveInventoryLine
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:MoveInventoryLineType
Containing Schema: MoveInventory.xsd
Abstract
Documentation:
Identifies the line items being Movemented providing information about the source and destination of the Movement.

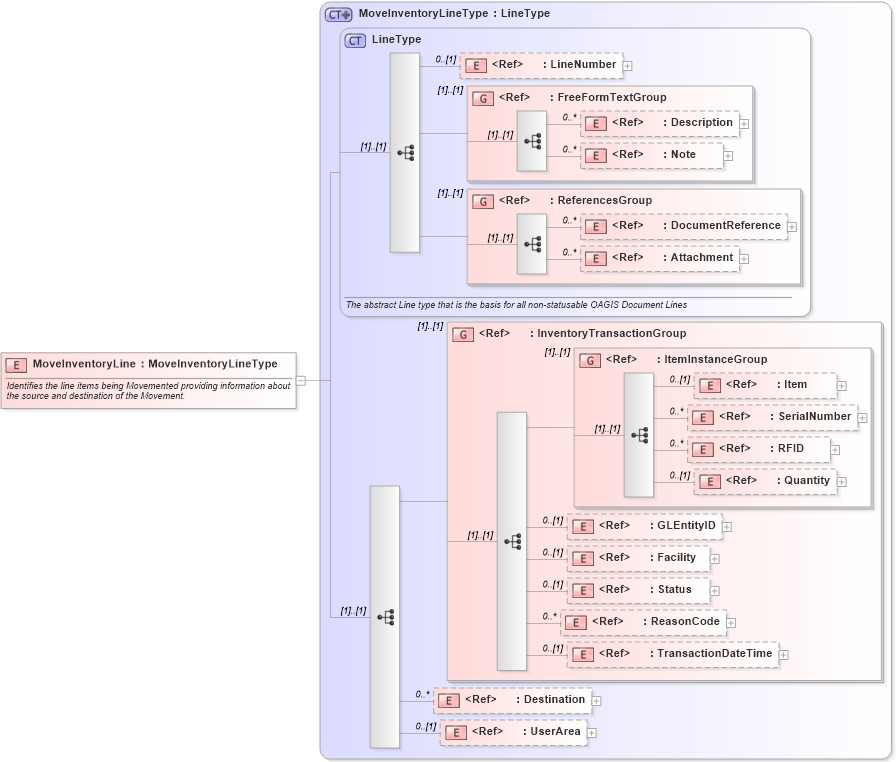

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Destination in schema moveinventory_xsd Drilldown into TransactionDateTime in schema fields_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into Status in schema components_xsd Drilldown into Facility in schema components_xsd Drilldown into GLEntityID in schema fields_xsd Drilldown into Quantity in schema fields_xsd Drilldown into RFID in schema fields_xsd Drilldown into SerialNumber in schema fields_xsd Drilldown into Item in schema components_xsd Drilldown into ItemInstanceGroup in schema components_xsd Drilldown into InventoryTransactionGroup in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into MoveInventoryLineType in schema moveinventory_xsdXSD Diagram of MoveInventoryLine in schema moveinventory_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="MoveInventoryLine" type="MoveInventoryLineType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Identifies the line items being Movemented providing information about the source and destination of the Movement.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Item nsA:Item 0 (1)
SerialNumber nsA:SerialNumber 0 unbounded
RFID nsA:RFID 0 unbounded
Quantity nsA:Quantity 0 (1)
GLEntityID nsA:GLEntityID 0 (1)
Facility nsA:Facility 0 (1)
Status nsA:Status 0 (1)
ReasonCode nsA:ReasonCode 0 unbounded
TransactionDateTime nsA:TransactionDateTime 0 (1)
Destination nsA:Destination 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
<xs:group> nsA:InventoryTransactionGroup (1) (1)
<xs:group> nsA:ItemInstanceGroup (1) (1)
Collapse Derivation Tree:
