Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: Personnel
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:PersonnelType
Containing Schema: Personnel.xsd
Abstract
Documentation:
Personnel information is the human resource information maintained for each employee. It includes such data as job code, employee status, department or place in the organization, and job-related skills. Although generally maintained in a Human Resource Management System (HRMS), this information may also be needed and updated by manufacturing applications (workforce scheduling) or project management (resource allocation).

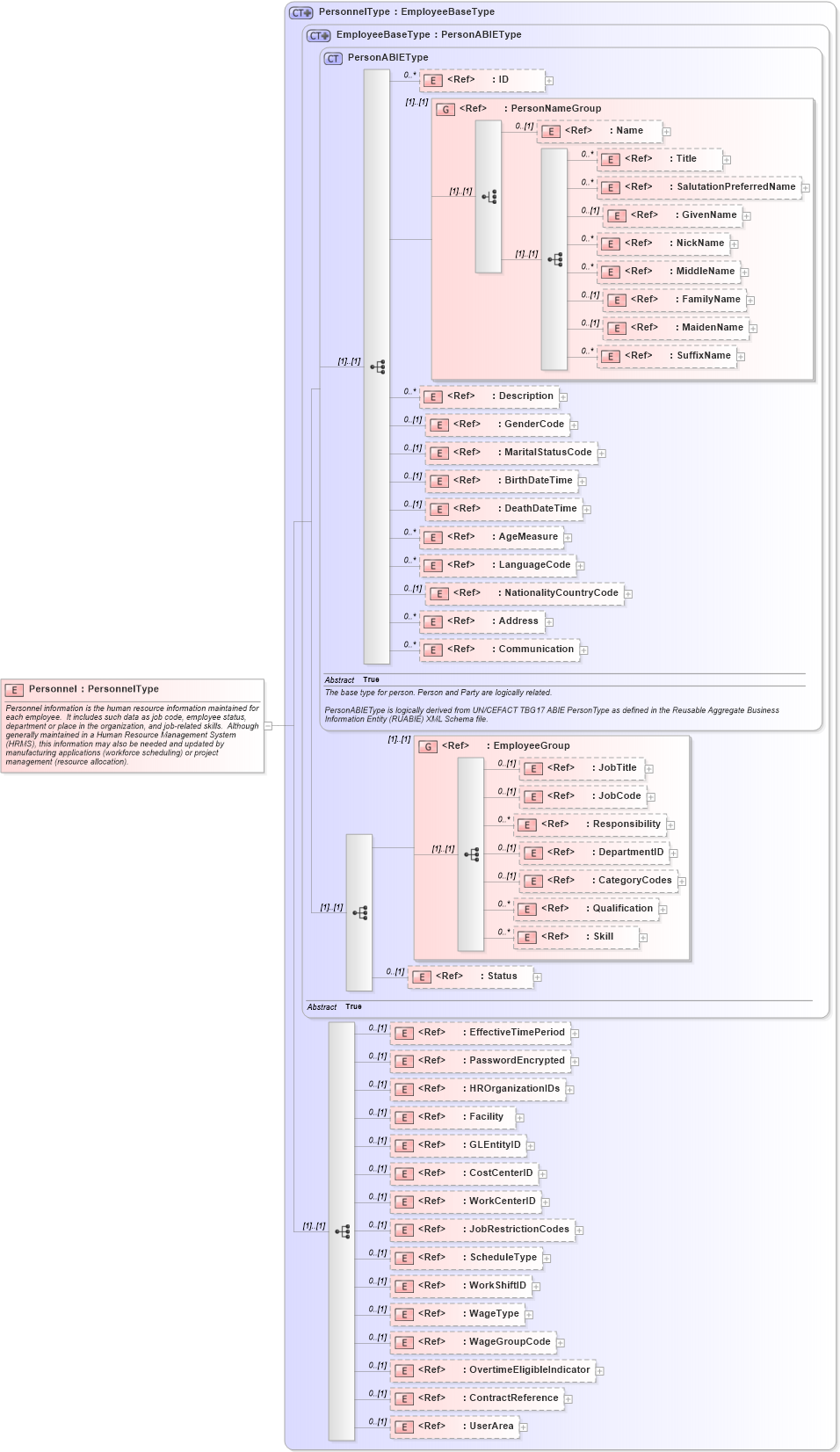

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ContractReference in schema components_xsd Drilldown into OvertimeEligibleIndicator in schema fields_xsd Drilldown into WageGroupCode in schema fields_xsd Drilldown into WageType in schema fields_xsd Drilldown into WorkShiftID in schema fields_xsd Drilldown into ScheduleType in schema fields_xsd Drilldown into JobRestrictionCodes in schema components_xsd Drilldown into WorkCenterID in schema fields_xsd Drilldown into CostCenterID in schema fields_xsd Drilldown into GLEntityID in schema fields_xsd Drilldown into Facility in schema components_xsd Drilldown into HROrganizationIDs in schema components_xsd Drilldown into PasswordEncrypted in schema fields_xsd Drilldown into EffectiveTimePeriod in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into Skill in schema components_xsd Drilldown into Qualification in schema components_xsd Drilldown into CategoryCodes in schema components_xsd Drilldown into DepartmentID in schema fields_xsd Drilldown into Responsibility in schema fields_xsd Drilldown into JobCode in schema fields_xsd Drilldown into JobTitle in schema fields_xsd Drilldown into EmployeeGroup in schema components_xsd Drilldown into Communication in schema components_xsd Drilldown into Address in schema components_xsd Drilldown into NationalityCountryCode in schema fields_xsd Drilldown into LanguageCode in schema fields_xsd Drilldown into AgeMeasure in schema fields_xsd Drilldown into DeathDateTime in schema fields_xsd Drilldown into BirthDateTime in schema fields_xsd Drilldown into MaritalStatusCode in schema fields_xsd Drilldown into GenderCode in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into SuffixName in schema fields_xsd Drilldown into MaidenName in schema fields_xsd Drilldown into FamilyName in schema fields_xsd Drilldown into MiddleName in schema fields_xsd Drilldown into NickName in schema fields_xsd Drilldown into GivenName in schema fields_xsd Drilldown into SalutationPreferredName in schema components_xsd Drilldown into Title in schema fields_xsd Drilldown into Name in schema fields_xsd Drilldown into PersonNameGroup in schema components_xsd Drilldown into ID in schema fields_xsd Drilldown into PersonABIEType in schema components_xsd Drilldown into EmployeeBaseType in schema components_xsd Drilldown into PersonnelType in schema personnel_xsdXSD Diagram of Personnel in schema personnel_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="Personnel" type="PersonnelType">
    <xsd:annotation>
        <xsd:documentation>Personnel information is the human resource information maintained for each employee.  It includes such data as job code, employee status, department or place in the organization, and job-related skills.  Although generally maintained in a Human Resource Management System (HRMS), this information may also be needed and updated by manufacturing applications (workforce scheduling) or project management (resource allocation).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
Name nsA:Name 0 (1)
Title nsA:Title 0 unbounded
SalutationPreferredName nsA:SalutationPreferredName 0 unbounded
GivenName nsA:GivenName 0 (1)
NickName nsA:NickName 0 unbounded
MiddleName nsA:MiddleName 0 unbounded
FamilyName nsA:FamilyName 0 (1)
MaidenName nsA:MaidenName 0 (1)
SuffixName nsA:SuffixName 0 unbounded
Description nsA:Description 0 unbounded
GenderCode nsA:GenderCode 0 (1)
MaritalStatusCode nsA:MaritalStatusCode 0 (1)
BirthDateTime nsA:BirthDateTime 0 (1)
DeathDateTime nsA:DeathDateTime 0 (1)
AgeMeasure nsA:AgeMeasure 0 unbounded
LanguageCode nsA:LanguageCode 0 unbounded
NationalityCountryCode nsA:NationalityCountryCode 0 (1)
Address nsA:Address 0 unbounded
Communication nsA:Communication 0 unbounded
JobTitle nsA:JobTitle 0 (1)
JobCode nsA:JobCode 0 (1)
Responsibility nsA:Responsibility 0 unbounded
DepartmentID nsA:DepartmentID 0 (1)
CategoryCodes nsA:CategoryCodes 0 (1)
Qualification nsA:Qualification 0 unbounded
Skill nsA:Skill 0 unbounded
Status nsA:Status 0 (1)
EffectiveTimePeriod nsA:EffectiveTimePeriod 0 (1)
PasswordEncrypted nsA:PasswordEncrypted 0 (1)
HROrganizationIDs nsA:HROrganizationIDs 0 (1)
Facility nsA:Facility 0 (1)
GLEntityID nsA:GLEntityID 0 (1)
CostCenterID nsA:CostCenterID 0 (1)
WorkCenterID nsA:WorkCenterID 0 (1)
JobRestrictionCodes nsA:JobRestrictionCodes 0 (1)
ScheduleType nsA:ScheduleType 0 (1)
WorkShiftID nsA:WorkShiftID 0 (1)
WageType nsA:WageType 0 (1)
WageGroupCode nsA:WageGroupCode 0 (1)
OvertimeEligibleIndicator nsA:OvertimeEligibleIndicator 0 (1)
ContractReference nsA:ContractReference 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:PersonNameGroup (1) (1)
<xs:group> nsA:EmployeeGroup (1) (1)
Collapse Derivation Tree:
