Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: PurchaseOrderHeaderType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:OrderHeaderType
Containing Schema: PurchaseOrder.xsd
Abstract

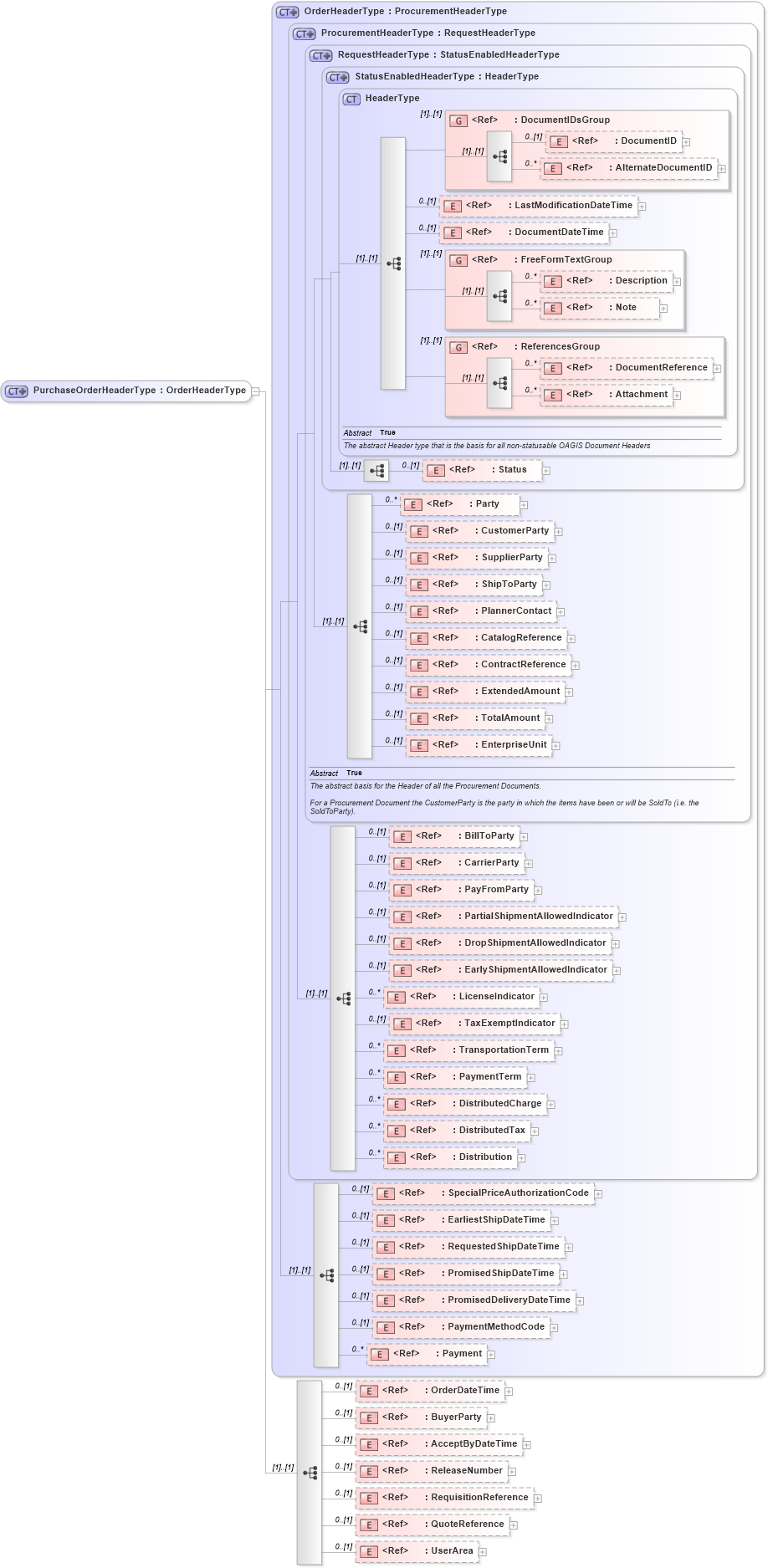

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into QuoteReference in schema components_xsd Drilldown into RequisitionReference in schema components_xsd Drilldown into ReleaseNumber in schema fields_xsd Drilldown into AcceptByDateTime in schema fields_xsd Drilldown into BuyerParty in schema components_xsd Drilldown into OrderDateTime in schema fields_xsd Drilldown into Payment in schema components_xsd Drilldown into PaymentMethodCode in schema fields_xsd Drilldown into PromisedDeliveryDateTime in schema fields_xsd Drilldown into PromisedShipDateTime in schema fields_xsd Drilldown into RequestedShipDateTime in schema fields_xsd Drilldown into EarliestShipDateTime in schema fields_xsd Drilldown into SpecialPriceAuthorizationCode in schema fields_xsd Drilldown into Distribution in schema components_xsd Drilldown into DistributedTax in schema components_xsd Drilldown into DistributedCharge in schema components_xsd Drilldown into PaymentTerm in schema components_xsd Drilldown into TransportationTerm in schema components_xsd Drilldown into TaxExemptIndicator in schema fields_xsd Drilldown into LicenseIndicator in schema fields_xsd Drilldown into EarlyShipmentAllowedIndicator in schema fields_xsd Drilldown into DropShipmentAllowedIndicator in schema fields_xsd Drilldown into PartialShipmentAllowedIndicator in schema fields_xsd Drilldown into PayFromParty in schema components_xsd Drilldown into CarrierParty in schema components_xsd Drilldown into BillToParty in schema components_xsd Drilldown into EnterpriseUnit in schema components_xsd Drilldown into TotalAmount in schema fields_xsd Drilldown into ExtendedAmount in schema fields_xsd Drilldown into ContractReference in schema components_xsd Drilldown into CatalogReference in schema components_xsd Drilldown into PlannerContact in schema components_xsd Drilldown into ShipToParty in schema components_xsd Drilldown into SupplierParty in schema components_xsd Drilldown into CustomerParty in schema components_xsd Drilldown into Party in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsd Drilldown into StatusEnabledHeaderType in schema components_xsd Drilldown into RequestHeaderType in schema ordermanagementcomponents_xsd Drilldown into ProcurementHeaderType in schema ordermanagementcomponents_xsd Drilldown into OrderHeaderType in schema ordermanagementcomponents_xsdXSD Diagram of PurchaseOrderHeaderType in schema purchaseorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="PurchaseOrderHeaderType">
    <xsd:complexContent>
        <xsd:extension base="OrderHeaderType">
            <xsd:sequence>
                <xsd:element ref="OrderDateTime" minOccurs="0" />
                <xsd:element ref="BuyerParty" minOccurs="0" />
                <xsd:element ref="AcceptByDateTime" minOccurs="0" />
                <xsd:element ref="ReleaseNumber" minOccurs="0" />
                <xsd:element ref="RequisitionReference" minOccurs="0" />
                <xsd:element ref="QuoteReference" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
Party nsA:Party 0 unbounded
CustomerParty nsA:CustomerParty 0 (1)
SupplierParty nsA:SupplierParty 0 (1)
ShipToParty nsA:ShipToParty 0 (1)
PlannerContact nsA:PlannerContact 0 (1)
CatalogReference nsA:CatalogReference 0 (1)
ContractReference nsA:ContractReference 0 (1)
ExtendedAmount nsA:ExtendedAmount 0 (1)
TotalAmount nsA:TotalAmount 0 (1)
EnterpriseUnit nsA:EnterpriseUnit 0 (1)
BillToParty nsA:BillToParty 0 (1)
CarrierParty nsA:CarrierParty 0 (1)
PayFromParty nsA:PayFromParty 0 (1)
PartialShipmentAllowedIndicator nsA:PartialShipmentAllowedIndicator 0 (1)
DropShipmentAllowedIndicator nsA:DropShipmentAllowedIndicator 0 (1)
EarlyShipmentAllowedIndicator nsA:EarlyShipmentAllowedIndicator 0 (1)
LicenseIndicator nsA:LicenseIndicator 0 unbounded
TaxExemptIndicator nsA:TaxExemptIndicator 0 (1)
TransportationTerm nsA:TransportationTerm 0 unbounded
PaymentTerm nsA:PaymentTerm 0 unbounded
DistributedCharge nsA:DistributedCharge 0 unbounded
DistributedTax nsA:DistributedTax 0 unbounded
Distribution nsA:Distribution 0 unbounded
SpecialPriceAuthorizationCode nsA:SpecialPriceAuthorizationCode 0 (1)
EarliestShipDateTime nsA:EarliestShipDateTime 0 (1)
RequestedShipDateTime nsA:RequestedShipDateTime 0 (1)
PromisedShipDateTime nsA:PromisedShipDateTime 0 (1)
PromisedDeliveryDateTime nsA:PromisedDeliveryDateTime 0 (1)
PaymentMethodCode nsA:PaymentMethodCode 0 (1)
Payment nsA:Payment 0 unbounded
OrderDateTime nsA:OrderDateTime 0 (1)
BuyerParty nsA:BuyerParty 0 (1)
AcceptByDateTime nsA:AcceptByDateTime 0 (1)
ReleaseNumber nsA:ReleaseNumber 0 (1)
RequisitionReference nsA:RequisitionReference 0 (1)
QuoteReference nsA:QuoteReference 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:PurchaseOrderHeader
