Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Group
Name: ComponentGroup
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5
Containing Schema: oval-definitions-schema.xsd
Documentation:
Any value that is pulled directly off the local system is defined by the basic component element. For example, the name of a user or the value of a registry key. Please refer to the definition of the ObjectComponentType for more information. A value can also be obtained from another variable. The variable element identifies a variable id to pull a value(s) from. Please refer to the definition of the VariableComponentType for more information. Literal values can also be specified.

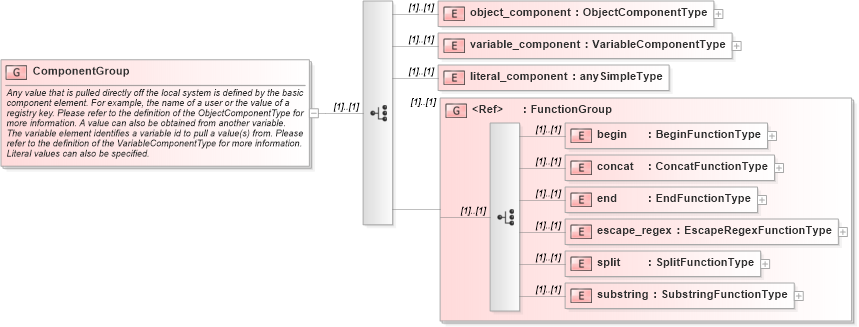

Collapse XSD Schema Diagram:
Drilldown into substring in schema oval-definitions-schema_xsd Drilldown into split in schema oval-definitions-schema_xsd Drilldown into escape_regex in schema oval-definitions-schema_xsd Drilldown into end in schema oval-definitions-schema_xsd Drilldown into concat in schema oval-definitions-schema_xsd Drilldown into begin in schema oval-definitions-schema_xsd Drilldown into FunctionGroup in schema oval-definitions-schema_xsd Drilldown into literal_component in schema oval-definitions-schema_xsd Drilldown into variable_component in schema oval-definitions-schema_xsd Drilldown into object_component in schema oval-definitions-schema_xsdXSD Diagram of ComponentGroup in schema oval-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:group name="ComponentGroup">
    <xsd:annotation>
        <xsd:documentation>Any value that is pulled directly off the local system is defined by the basic component element. For example, the name of a user or the value of a registry key. Please refer to the definition of the ObjectComponentType for more information. A value can also be obtained from another variable. The variable element identifies a variable id to pull a value(s) from. Please refer to the definition of the VariableComponentType for more information. Literal values can also be specified.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="literal_component" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="oval-def:literal_component">
                    <sch:assert test=".!=''">The literal_component of variable <sch:value-of select="../../@id" /> can not be empty.</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:choice>
        <xsd:element name="object_component" type="oval-def:ObjectComponentType" />
        <xsd:element name="variable_component" type="oval-def:VariableComponentType" />
        <xsd:element name="literal_component" type="xsd:anySimpleType" />
        <xsd:group ref="oval-def:FunctionGroup" />
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
object_component oval-def:object_component (1) (1)
variable_component oval-def:variable_component (1) (1)
literal_component oval-def:literal_component (1) (1)
begin oval-def:begin (1) (1)
concat oval-def:concat (1) (1)
end oval-def:end (1) (1)
escape_regex oval-def:escape_regex (1) (1)
split oval-def:split (1) (1)
substring oval-def:substring (1) (1)
<xs:group> oval-def:FunctionGroup (1) (1)
