Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: end
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5
Type: oval-def:EndFunctionType
Containing Schema: oval-definitions-schema.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

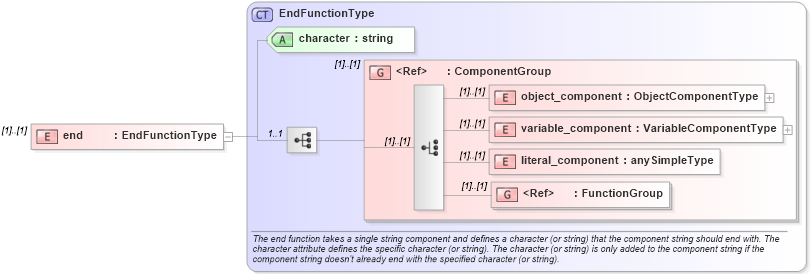

Collapse XSD Schema Diagram:
Drilldown into FunctionGroup in schema oval-definitions-schema_xsd Drilldown into literal_component in schema oval-definitions-schema_xsd Drilldown into variable_component in schema oval-definitions-schema_xsd Drilldown into object_component in schema oval-definitions-schema_xsd Drilldown into ComponentGroup in schema oval-definitions-schema_xsd Drilldown into character in schema oval-definitions-schema_xsd Drilldown into EndFunctionType in schema oval-definitions-schema_xsdXSD Diagram of end in schema oval-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="end" type="oval-def:EndFunctionType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
object_component oval-def:object_component (1) (1)
variable_component oval-def:variable_component (1) (1)
literal_component oval-def:literal_component (1) (1)
begin oval-def:begin (1) (1)
concat oval-def:concat (1) (1)
end oval-def:end (1) (1)
escape_regex oval-def:escape_regex (1) (1)
split oval-def:split (1) (1)
substring oval-def:substring (1) (1)
<xs:group> oval-def:ComponentGroup (1) (1)
<xs:group> oval-def:FunctionGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
character oval-def:character Required
Collapse Derivation Tree:
