<xsd:element name="registry_object" substitutionGroup="oval-def:object">
<xsd:annotation>
<xsd:documentation />
</xsd:annotation>
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval-def:ObjectType">
<xsd:sequence>
<xsd:choice>
<xsd:element ref="oval-def:set" minOccurs="0" />
<xsd:sequence minOccurs="0">
<xsd:element name="behaviors" type="win-def:RegistryBehaviors" minOccurs="0" />
<xsd:element name="hive" type="win-def:EntityObjectRegistryHiveType">
<xsd:annotation>
<xsd:documentation>The hive that the registry key belongs to. This is restricted to a specific set of values: HKEY_CLASSES_ROOT, HKEY_CURRENT_CONFIG, HKEY_CURRENT_USER, HKEY_LOCAL_MACHINE, and HKEY_USERS.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="regobjhive" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:registry_object/win-def:hive">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the hive entity of a registry_object should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="key" type="oval-def:EntityObjectStringType" nillable="true">
<xsd:annotation>
<xsd:documentation>The key element describes a registry key to be collected. Note that the hive portion of the string should not be included, as this data should be found under the hive element. If the nillable attribute is set to true, then the object being specified is the higher level hive. In this case, the key element should not be collected or used in analysis. Setting nil equal to true is different than using a .* pattern match. A .* pattern match says to collect every key under a given hive. Note that when nil is used for the key element, the name element should also be nilled.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="regobjkey" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:registry_object/win-def:key">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the key entity of a registry_object should be 'string'</sch:assert>
<sch:assert test="not(@xsi:nil='true') or ../win-def:name/@xsi:nil='true'">
<sch:value-of select="../@id" /> - name entity must be nil when key is nil</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="name" type="oval-def:EntityObjectStringType" nillable="true">
<xsd:annotation>
<xsd:documentation>The name element describes the name assigned to a value associated with a specific registry key. If the nillable attribute is set to true, then the object being specified is the higher level hive/key. In this case, the name element should not be collected or used in analysis. Setting nil equal to true on an element is different than using a .* pattern match. A .* pattern match says to collect every name under a given hive/key. The most likely use for xsi:nil within a registry object is when checking for the existance of a particular key, without regards to the different names associated with it.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="regobjname" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:registry_object/win-def:name">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the name entity of a registry_object should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:choice>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

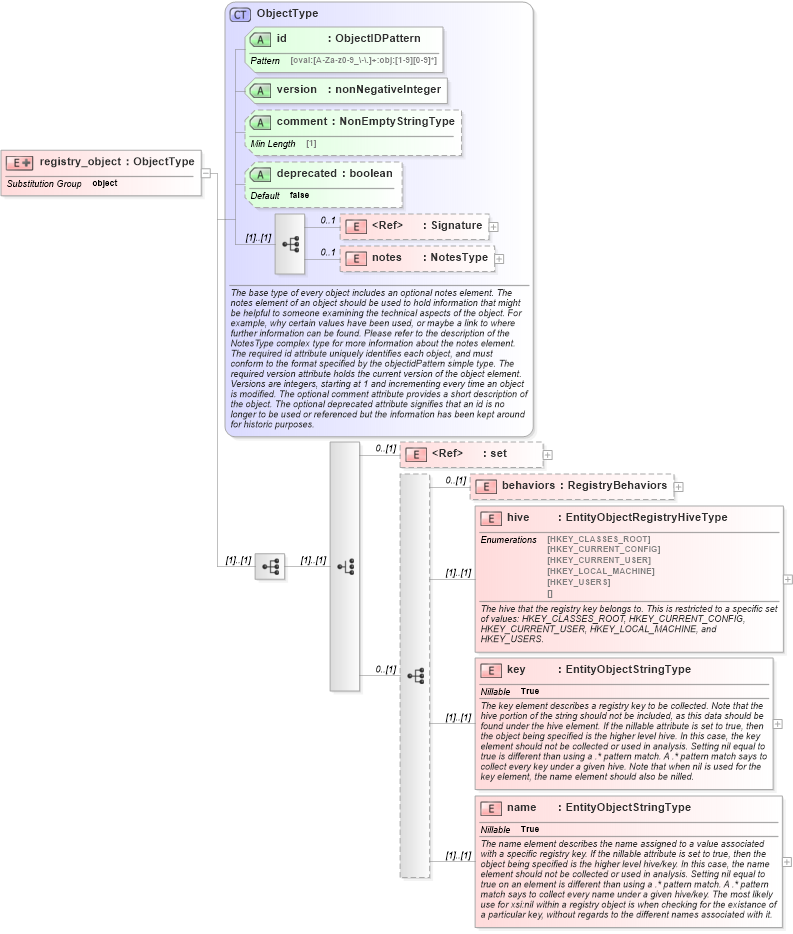

XSD Schema Diagram:
