Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: sql_object
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#independent
Type: oval-def:ObjectType
Containing Schema: independent-definitions-schema.xsd
Abstract
Documentation:
The sql_object element is used by a sql test to define the specific database and query to be evaluated. Connection information is supplied allowing the tool to connect to the desired database and a query is supplied to call out the desired setting. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema.

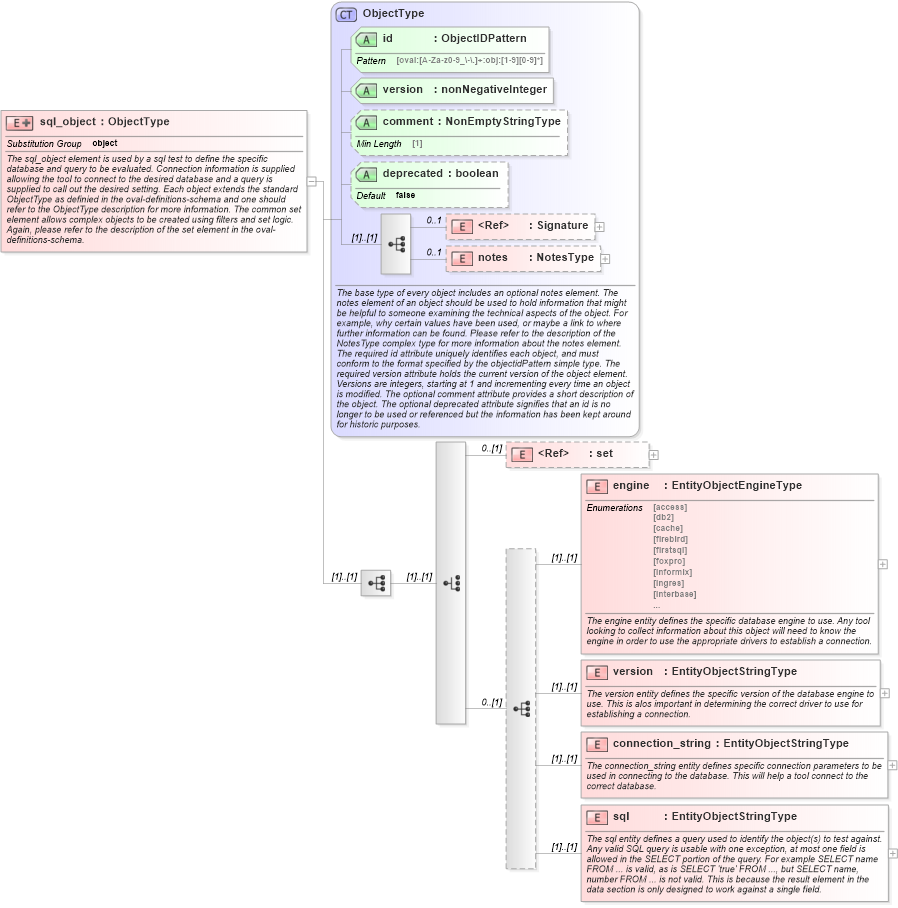

Collapse XSD Schema Diagram:
Drilldown into sql in schema independent-definitions-schema_xsd Drilldown into connection_string in schema independent-definitions-schema_xsd Drilldown into version in schema independent-definitions-schema_xsd Drilldown into engine in schema independent-definitions-schema_xsd Drilldown into set in schema oval-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into ObjectType in schema oval-definitions-schema_xsdXSD Diagram of sql_object in schema independent-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="sql_object" substitutionGroup="oval-def:object">
    <xsd:annotation>
        <xsd:documentation>The sql_object element is used by a sql test to define the specific database and query to be evaluated. Connection information is supplied allowing the tool to connect to the desired database and a query is supplied to call out the desired setting. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:ObjectType">
                <xsd:sequence>
                    <xsd:choice>
                        <xsd:element ref="oval-def:set" minOccurs="0" />
                        <xsd:sequence minOccurs="0">
                            <xsd:element name="engine" type="ind-def:EntityObjectEngineType">
                                <xsd:annotation>
                                    <xsd:documentation>The engine entity defines the specific database engine to use. Any tool looking to collect information about this object will need to know the engine in order to use the appropriate drivers to establish a connection.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="sqlobjdengine" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="ind-def:sql_object/ind-def:engine">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the engine entity of an sql_object should be 'string'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                            <xsd:element name="version" type="oval-def:EntityObjectStringType">
                                <xsd:annotation>
                                    <xsd:documentation>The version entity defines the specific version of the database engine to use. This is alos important in determining the correct driver to use for establishing a connection.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="sqlobjversion" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="ind-def:sql_object/ind-def:version">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the version entity of an sql_object should be 'string'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                            <xsd:element name="connection_string" type="oval-def:EntityObjectStringType">
                                <xsd:annotation>
                                    <xsd:documentation>The connection_string entity defines specific connection parameters to be used in connecting to the database. This will help a tool connect to the correct database.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="sqlobjconnection_string" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="ind-def:sql_object/ind-def:connection_string">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the connection_string entity of an sql_object should be 'string'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                            <xsd:element name="sql" type="oval-def:EntityObjectStringType">
                                <xsd:annotation>
                                    <xsd:documentation>The sql entity defines a query used to identify the object(s) to test against. Any valid SQL query is usable with one exception, at most one field is allowed in the SELECT portion of the query. For example SELECT name FROM ... is valid, as is SELECT 'true' FROM ..., but SELECT name, number FROM ... is not valid. This is because the result element in the data section is only designed to work against a single field.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="sqlobjsql" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="ind-def:sql_object/ind-def:sql">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the sql entity of a sql_object should be 'string'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                        </xsd:sequence>
                    </xsd:choice>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
set oval-def:set 0 (1)
engine ind-def:engine (1) (1)
version ind-def:version (1) (1)
connection_string ind-def:connection_string (1) (1)
sql ind-def:sql (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:object
