Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: user_sid_item
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#windows
Type: oval-sc:ItemType
Containing Schema: windows-system-characteristics-schema.xsd
Abstract
Documentation:
The windows user_sid_item allows the different groups (identified by SID) that a user belongs to be collected.

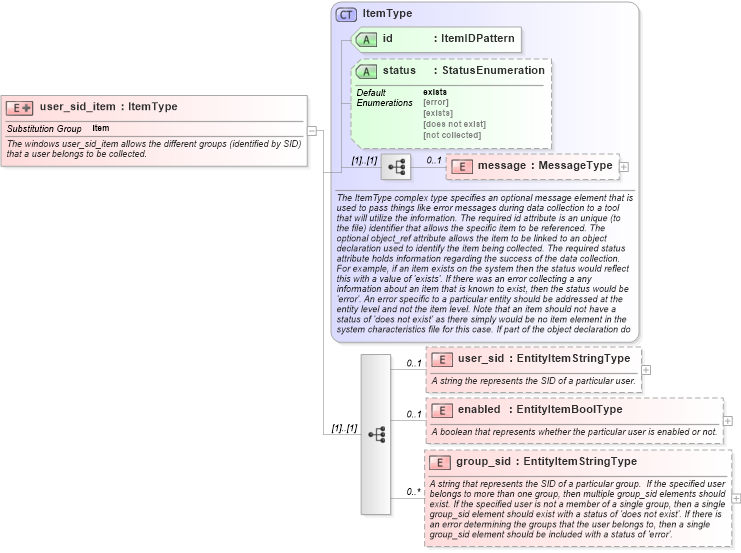

Collapse XSD Schema Diagram:
Drilldown into group_sid in schema windows-system-characteristics-schema_xsd Drilldown into enabled in schema windows-system-characteristics-schema_xsd Drilldown into user_sid in schema windows-system-characteristics-schema_xsd Drilldown into message in schema oval-system-characteristics-schema_xsd Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into id in schema oval-system-characteristics-schema_xsd Drilldown into ItemType in schema oval-system-characteristics-schema_xsdXSD Diagram of user_sid_item in schema windows-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="user_sid_item" substitutionGroup="oval-sc:item">
    <xsd:annotation>
        <xsd:documentation>The windows user_sid_item allows the different groups (identified by SID) that a user belongs to be collected.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-sc:ItemType">
                <xsd:sequence>
                    <xsd:element name="user_sid" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>A string the represents the SID of a particular user.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="usersiditemuser" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-sc:user_sid_item/win-sc:user_sid">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the user_sid entity of a user_sid_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="enabled" type="oval-sc:EntityItemBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>A boolean that represents whether the particular user is enabled or not.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="usersiditemenabled" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-sc:user_sid_item/win-sc:enabled">
                                        <sch:assert test="@datatype='boolean'">item <sch:value-of select="../@id" /> - datatype attribute for the enabled entity of a user_sid_item should be 'boolean'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="group_sid" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="unbounded">
                        <xsd:annotation>
                            <xsd:documentation>A string that represents the SID of a particular group.  If the specified user belongs to more than one group, then multiple group_sid elements should exist. If the specified user is not a member of a single group, then a single group_sid element should exist with a status of 'does not exist'. If there is an error determining the groups that the user belongs to, then a single group_sid element should be included with a status of 'error'.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="usersiditemgroup" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-sc:user_sid_item/win-sc:group_sid">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for a group_sid entity of a user_sid_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
message oval-sc:message 0 1
user_sid win-sc:user_sid 0 1
enabled win-sc:enabled 0 1
group_sid win-sc:group_sid 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id oval-sc:id Required
status oval-sc:status exists Optional
Collapse Derivation Tree:
Collapse References:
oval-sc:item
