Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: user_sid_state
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#windows
Type: oval-def:StateType
Containing Schema: windows-definitions-schema.xsd
Abstract
Documentation:
The user_sid_state element enumerates the different groups (identified by SID) that a Windows user might belong to. Please refer to the individual elements in the schema for more details about what each represents.

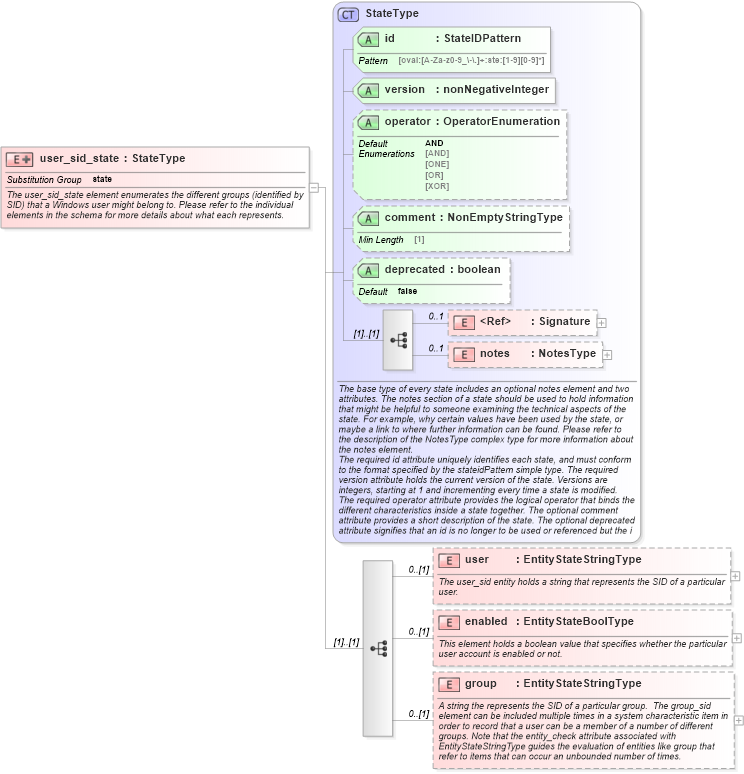

Collapse XSD Schema Diagram:
Drilldown into group in schema windows-definitions-schema_xsd Drilldown into enabled in schema windows-definitions-schema_xsd Drilldown into user in schema windows-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into operator in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into StateType in schema oval-definitions-schema_xsdXSD Diagram of user_sid_state in schema windows-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="user_sid_state" substitutionGroup="oval-def:state">
    <xsd:annotation>
        <xsd:documentation>The user_sid_state element enumerates the different groups (identified by SID) that a Windows user might belong to. Please refer to the individual elements in the schema for more details about what each represents.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:StateType">
                <xsd:sequence>
                    <xsd:element name="user" type="oval-def:EntityStateStringType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>The user_sid entity holds a string that represents the SID of a particular user.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="usersidsteuser" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:user_sid_state/win-def:user_sid">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the user_sid entity of a user_sid_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="enabled" type="oval-def:EntityStateBoolType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>This element holds a boolean value that specifies whether the particular user account is enabled or not.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="usersidsteenabled" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:user_sid_state/win-def:enabled">
                                        <sch:assert test="@datatype='boolean'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the enabled entity of a user_state should be 'boolean'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="group" type="oval-def:EntityStateStringType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>A string the represents the SID of a particular group.  The group_sid element can be included multiple times in a system characteristic item in order to record that a user can be a member of a number of different groups. Note that the entity_check attribute associated with EntityStateStringType guides the evaluation of entities like group that refer to items that can occur an unbounded number of times.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="usersidstegroup" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:user_sid_state/win-def:group_sid">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the group_sid entity of a user_sid_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
user win-def:user 0 (1)
enabled win-def:enabled 0 (1)
group win-def:group 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
operator oval-def:operator AND Optional
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:state
