Definition Type: Element
Name: OrderResponse
Namespace: urn:oasis:names:specification:ubl:schema:xsd:OrderResponse-2
Type: nsS:OrderResponseType
Containing Schema: UBL-OrderResponse-2.0.xsd
Abstract
Documentation:
This element MUST be conveyed as the root element in any instance document based on this Schema expression

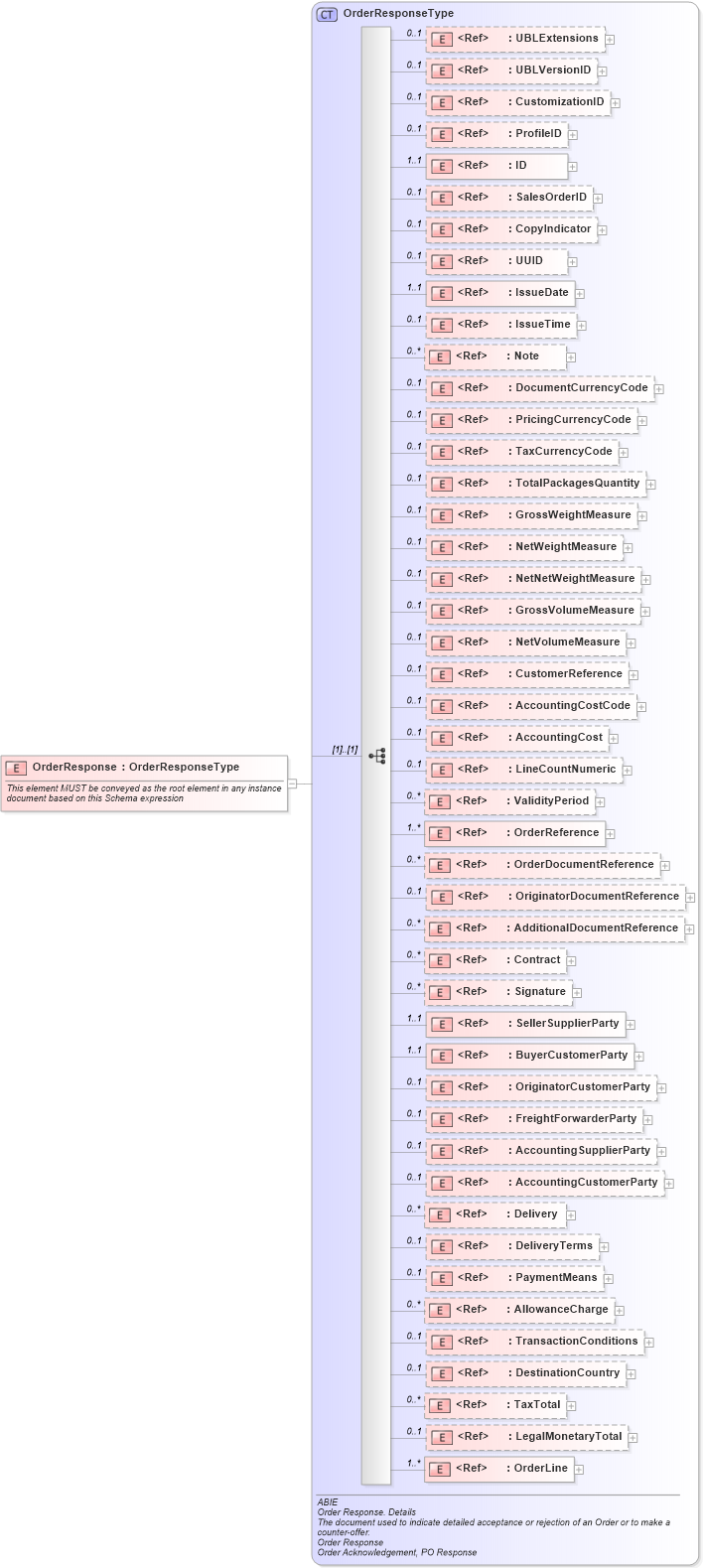

Collapse XSD Schema Diagram:
Drilldown into OrderLine in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LegalMonetaryTotal in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TaxTotal in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DestinationCountry in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TransactionConditions in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AllowanceCharge in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PaymentMeans in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DeliveryTerms in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Delivery in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AccountingCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AccountingSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into FreightForwarderParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OriginatorCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into BuyerCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SellerSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Signature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Contract in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AdditionalDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OriginatorDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OrderDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OrderReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ValidityPeriod in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LineCountNumeric in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AccountingCost in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AccountingCostCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomerReference in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into NetVolumeMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into GrossVolumeMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into NetNetWeightMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into NetWeightMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into GrossWeightMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TotalPackagesQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TaxCurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PricingCurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DocumentCurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CopyIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into SalesOrderID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ProfileID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomizationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLVersionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLExtensions in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into OrderResponseType in schema ubl-orderresponse-2_0_xsdXSD Diagram of OrderResponse in schema ubl-orderresponse-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="OrderResponse" type="OrderResponseType">
    <xsd:annotation>
        <xsd:documentation>This element MUST be conveyed as the root element in any instance document based on this Schema expression</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UBLExtensions ext:UBLExtensions 0 1
UBLVersionID cbc:UBLVersionID 0 1
CustomizationID cbc:CustomizationID 0 1
ProfileID cbc:ProfileID 0 1
ID cbc:ID 1 1
SalesOrderID cbc:SalesOrderID 0 1
CopyIndicator cbc:CopyIndicator 0 1
UUID cbc:UUID 0 1
IssueDate cbc:IssueDate 1 1
IssueTime cbc:IssueTime 0 1
Note cbc:Note 0 unbounded
DocumentCurrencyCode cbc:DocumentCurrencyCode 0 1
PricingCurrencyCode cbc:PricingCurrencyCode 0 1
TaxCurrencyCode cbc:TaxCurrencyCode 0 1
TotalPackagesQuantity cbc:TotalPackagesQuantity 0 1
GrossWeightMeasure cbc:GrossWeightMeasure 0 1
NetWeightMeasure cbc:NetWeightMeasure 0 1
NetNetWeightMeasure cbc:NetNetWeightMeasure 0 1
GrossVolumeMeasure cbc:GrossVolumeMeasure 0 1
NetVolumeMeasure cbc:NetVolumeMeasure 0 1
CustomerReference cbc:CustomerReference 0 1
AccountingCostCode cbc:AccountingCostCode 0 1
AccountingCost cbc:AccountingCost 0 1
LineCountNumeric cbc:LineCountNumeric 0 1
ValidityPeriod cac:ValidityPeriod 0 unbounded
OrderReference cac:OrderReference 1 unbounded
OrderDocumentReference cac:OrderDocumentReference 0 unbounded
OriginatorDocumentReference cac:OriginatorDocumentReference 0 1
AdditionalDocumentReference cac:AdditionalDocumentReference 0 unbounded
Contract cac:Contract 0 unbounded
Signature cac:Signature 0 unbounded
SellerSupplierParty cac:SellerSupplierParty 1 1
BuyerCustomerParty cac:BuyerCustomerParty 1 1
OriginatorCustomerParty cac:OriginatorCustomerParty 0 1
FreightForwarderParty cac:FreightForwarderParty 0 1
AccountingSupplierParty cac:AccountingSupplierParty 0 1
AccountingCustomerParty cac:AccountingCustomerParty 0 1
Delivery cac:Delivery 0 unbounded
DeliveryTerms cac:DeliveryTerms 0 1
PaymentMeans cac:PaymentMeans 0 1
AllowanceCharge cac:AllowanceCharge 0 unbounded
TransactionConditions cac:TransactionConditions 0 1
DestinationCountry cac:DestinationCountry 0 1
TaxTotal cac:TaxTotal 0 unbounded
LegalMonetaryTotal cac:LegalMonetaryTotal 0 1
OrderLine cac:OrderLine 1 unbounded
Collapse Derivation Tree:
