Definition Type: Element
Name: RequestForQuotation
Namespace: urn:oasis:names:specification:ubl:schema:xsd:RequestForQuotation-2
Type: nsZ:RequestForQuotationType
Containing Schema: UBL-RequestForQuotation-2.0.xsd
Abstract
Documentation:
This element MUST be conveyed as the root element in any instance document based on this Schema expression

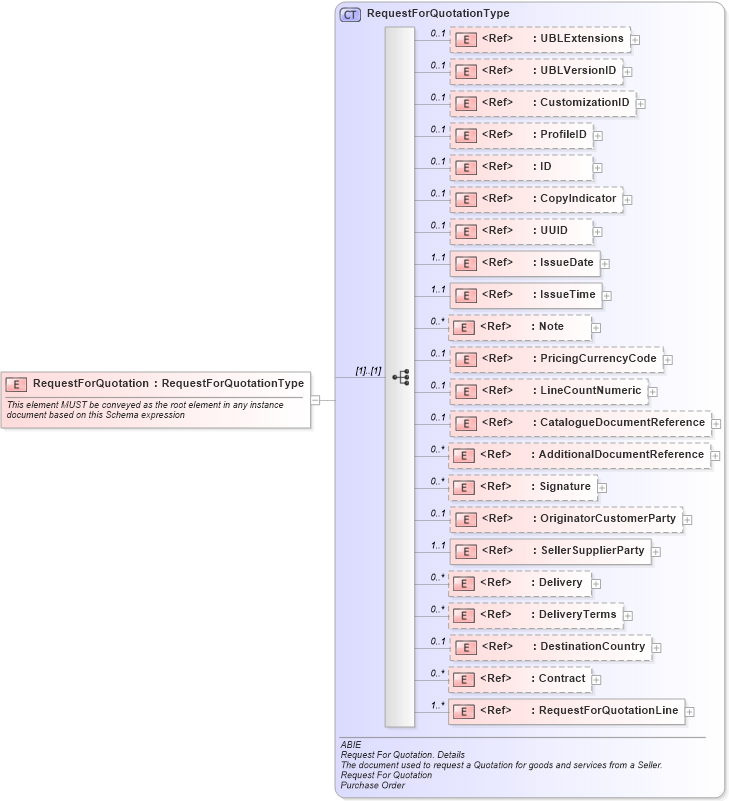

Collapse XSD Schema Diagram:
Drilldown into RequestForQuotationLine in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Contract in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DestinationCountry in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DeliveryTerms in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Delivery in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SellerSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OriginatorCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Signature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AdditionalDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CatalogueDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LineCountNumeric in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PricingCurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CopyIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ProfileID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomizationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLVersionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLExtensions in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into RequestForQuotationType in schema ubl-requestforquotation-2_0_xsdXSD Diagram of RequestForQuotation in schema ubl-requestforquotation-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="RequestForQuotation" type="RequestForQuotationType">
    <xsd:annotation>
        <xsd:documentation>This element MUST be conveyed as the root element in any instance document based on this Schema expression</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UBLExtensions ext:UBLExtensions 0 1
UBLVersionID cbc:UBLVersionID 0 1
CustomizationID cbc:CustomizationID 0 1
ProfileID cbc:ProfileID 0 1
ID cbc:ID 0 1
CopyIndicator cbc:CopyIndicator 0 1
UUID cbc:UUID 0 1
IssueDate cbc:IssueDate 1 1
IssueTime cbc:IssueTime 1 1
Note cbc:Note 0 unbounded
PricingCurrencyCode cbc:PricingCurrencyCode 0 1
LineCountNumeric cbc:LineCountNumeric 0 1
CatalogueDocumentReference cac:CatalogueDocumentReference 0 1
AdditionalDocumentReference cac:AdditionalDocumentReference 0 unbounded
Signature cac:Signature 0 unbounded
OriginatorCustomerParty cac:OriginatorCustomerParty 0 1
SellerSupplierParty cac:SellerSupplierParty 1 1
Delivery cac:Delivery 0 unbounded
DeliveryTerms cac:DeliveryTerms 0 unbounded
DestinationCountry cac:DestinationCountry 0 1
Contract cac:Contract 0 unbounded
RequestForQuotationLine cac:RequestForQuotationLine 1 unbounded
Collapse Derivation Tree:
