Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: autoFilter
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_AutoFilter
Containing Schema: sml-pivotTable.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
Auto Filter

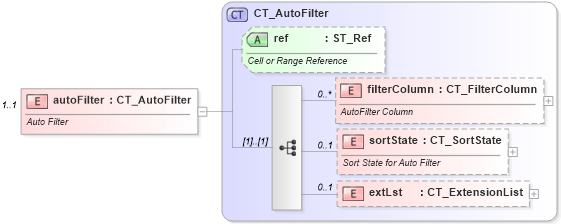

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-autofilter_xsd Drilldown into sortState in schema sml-autofilter_xsd Drilldown into filterColumn in schema sml-autofilter_xsd Drilldown into ref in schema sml-autofilter_xsd Drilldown into CT_AutoFilter in schema sml-autofilter_xsdXSD Diagram of autoFilter in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="autoFilter" minOccurs="1" maxOccurs="1" type="CT_AutoFilter">
    <xsd:annotation>
        <xsd:documentation>Auto Filter</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
filterColumn nsM:filterColumn 0 unbounded
sortState nsM:sortState 0 1
extLst nsM:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
ref nsM:ref (Optional)
Collapse Derivation Tree:
