Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_AutoFilter
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-autoFilter.xsd
Abstract

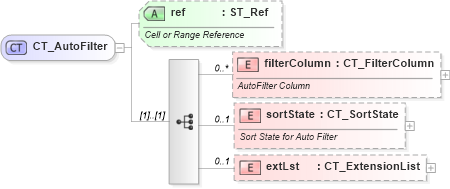

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-autofilter_xsd Drilldown into sortState in schema sml-autofilter_xsd Drilldown into filterColumn in schema sml-autofilter_xsd Drilldown into ref in schema sml-autofilter_xsdXSD Diagram of CT_AutoFilter in schema sml-autofilter_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_AutoFilter">
    <xsd:sequence>
        <xsd:element name="filterColumn" minOccurs="0" maxOccurs="unbounded" type="CT_FilterColumn">
            <xsd:annotation>
                <xsd:documentation>AutoFilter Column</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sortState" minOccurs="0" maxOccurs="1" type="CT_SortState">
            <xsd:annotation>
                <xsd:documentation>Sort State for Auto Filter</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="ref" type="ST_Ref">
        <xsd:annotation>
            <xsd:documentation>Cell or Range Reference</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
filterColumn nsM:filterColumn 0 unbounded
sortState nsM:sortState 0 1
extLst nsM:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
ref nsM:ref (Optional)
Collapse Derivation Tree:
Collapse References:
nsM:autoFilter, nsM:autoFilter, nsM:autoFilter, nsM:autoFilter, nsM:autoFilter
