Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: filterColumn
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_FilterColumn
Containing Schema: sml-autoFilter.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
AutoFilter Column

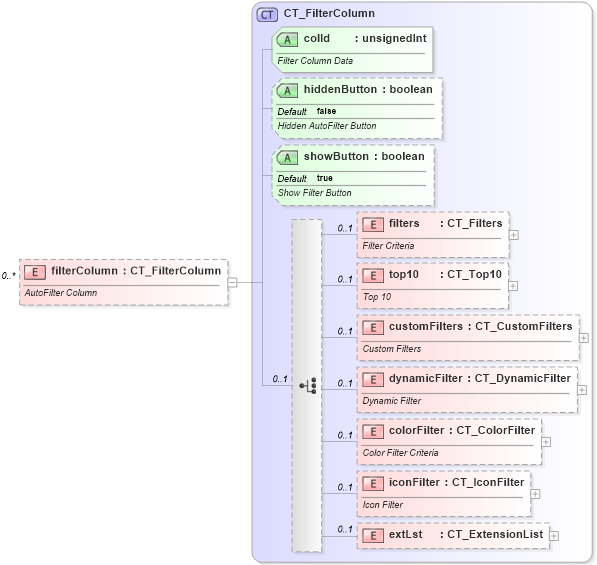

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-autofilter_xsd Drilldown into iconFilter in schema sml-autofilter_xsd Drilldown into colorFilter in schema sml-autofilter_xsd Drilldown into dynamicFilter in schema sml-autofilter_xsd Drilldown into customFilters in schema sml-autofilter_xsd Drilldown into top10 in schema sml-autofilter_xsd Drilldown into filters in schema sml-autofilter_xsd Drilldown into showButton in schema sml-autofilter_xsd Drilldown into hiddenButton in schema sml-autofilter_xsd Drilldown into colId in schema sml-autofilter_xsd Drilldown into CT_FilterColumn in schema sml-autofilter_xsdXSD Diagram of filterColumn in schema sml-autofilter_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="filterColumn" minOccurs="0" maxOccurs="unbounded" type="CT_FilterColumn">
    <xsd:annotation>
        <xsd:documentation>AutoFilter Column</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
filters nsM:filters 0 1
top10 nsM:top10 0 1
customFilters nsM:customFilters 0 1
dynamicFilter nsM:dynamicFilter 0 1
colorFilter nsM:colorFilter 0 1
iconFilter nsM:iconFilter 0 1
extLst nsM:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
colId nsM:colId Required
hiddenButton nsM:hiddenButton false Optional
showButton nsM:showButton true Optional
Collapse Derivation Tree:
