Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_FilterColumn
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-autoFilter.xsd
Abstract

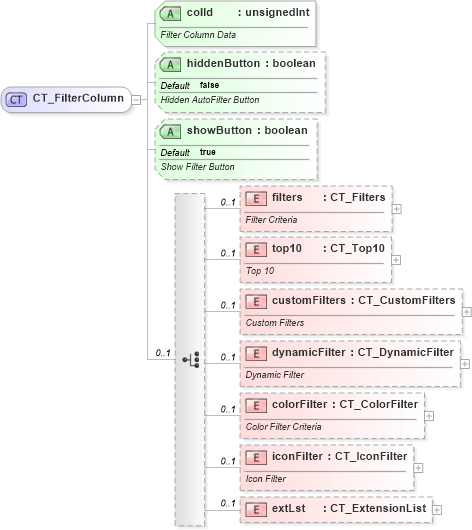

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-autofilter_xsd Drilldown into iconFilter in schema sml-autofilter_xsd Drilldown into colorFilter in schema sml-autofilter_xsd Drilldown into dynamicFilter in schema sml-autofilter_xsd Drilldown into customFilters in schema sml-autofilter_xsd Drilldown into top10 in schema sml-autofilter_xsd Drilldown into filters in schema sml-autofilter_xsd Drilldown into showButton in schema sml-autofilter_xsd Drilldown into hiddenButton in schema sml-autofilter_xsd Drilldown into colId in schema sml-autofilter_xsdXSD Diagram of CT_FilterColumn in schema sml-autofilter_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_FilterColumn">
    <xsd:choice minOccurs="0" maxOccurs="1">
        <xsd:element name="filters" type="CT_Filters" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Filter Criteria</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="top10" type="CT_Top10" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Top 10</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="customFilters" type="CT_CustomFilters" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Custom Filters</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="dynamicFilter" type="CT_DynamicFilter" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Dynamic Filter</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="colorFilter" type="CT_ColorFilter" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Color Filter Criteria</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="iconFilter" minOccurs="0" maxOccurs="1" type="CT_IconFilter">
            <xsd:annotation>
                <xsd:documentation>Icon Filter</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:choice>
    <xsd:attribute name="colId" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>Filter Column Data</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hiddenButton" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Hidden AutoFilter Button</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showButton" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Show Filter Button</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
filters nsM:filters 0 1
top10 nsM:top10 0 1
customFilters nsM:customFilters 0 1
dynamicFilter nsM:dynamicFilter 0 1
colorFilter nsM:colorFilter 0 1
iconFilter nsM:iconFilter 0 1
extLst nsM:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
colId nsM:colId Required
hiddenButton nsM:hiddenButton false Optional
showButton nsM:showButton true Optional
Collapse Derivation Tree:
Collapse References:
nsM:filterColumn
