Definition Type: ComplexType
Name: CT_Colors
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramColorTransform.xsd
Abstract

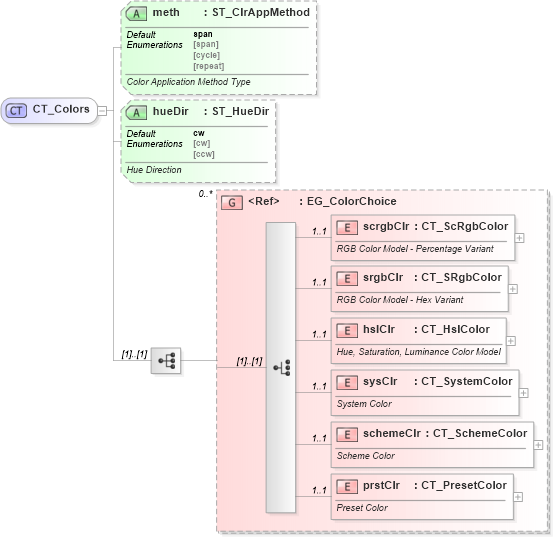

Collapse XSD Schema Diagram:
Drilldown into prstClr in schema dml-basetypes_xsd Drilldown into schemeClr in schema dml-basetypes_xsd Drilldown into sysClr in schema dml-basetypes_xsd Drilldown into hslClr in schema dml-basetypes_xsd Drilldown into srgbClr in schema dml-basetypes_xsd Drilldown into scrgbClr in schema dml-basetypes_xsd Drilldown into EG_ColorChoice in schema dml-basetypes_xsd Drilldown into hueDir in schema dml-diagramcolortransform_xsd Drilldown into meth in schema dml-diagramcolortransform_xsdXSD Diagram of CT_Colors in schema dml-diagramcolortransform_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Colors">
    <xsd:sequence>
        <xsd:group ref="a:EG_ColorChoice" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="meth" type="ST_ClrAppMethod" use="optional" default="span">
        <xsd:annotation>
            <xsd:documentation>Color Application Method Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hueDir" type="ST_HueDir" use="optional" default="cw">
        <xsd:annotation>
            <xsd:documentation>Hue Direction</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
scrgbClr a:scrgbClr 1 1
srgbClr a:srgbClr 1 1
hslClr a:hslClr 1 1
sysClr a:sysClr 1 1
schemeClr a:schemeClr 1 1
prstClr a:prstClr 1 1
<xs:group> a:EG_ColorChoice 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
meth nsC:meth span Optional
hueDir nsC:hueDir cw Optional
Collapse Derivation Tree:
Collapse References:
nsC:effectClrLst, nsC:fillClrLst, nsC:linClrLst, nsC:txEffectClrLst, nsC:txFillClrLst, nsC:txLinClrLst
